Description

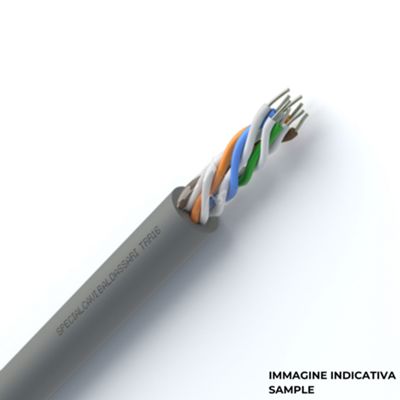

The TRRZ04M250 cable from the TRR16 series by Specialcavi Baldassari is designed for the transmission of voice and data signals in civil and industrial environments. Composed of 4 twisted pairs of 0.6 mm², it offers good protection against electromagnetic interference.
Classified CPR Cca-s3,d0,a3, it complies with European regulations for reaction to fire, ensuring safety in the event of fire. The external coating in gray PVC makes it suitable for fixed installations in indoor environments.
Datasheet
• Model: TRRZ04M250
• TRR16 Series
• Specialcavi Baldassari Manufacturer
• Structure 4 twisted pairs (4x2x0.6 mm)
• Rigid tinned copper conductors Ø 0.60 mm
• PVC insulation
• External sheath PVC grey (RAL 7001)
• External diameter approx. 5.7 mm
• CPR Class Cca-s3,d0,a3
• Rated voltage 300/300V
• Test voltage 1000V
• Operating temperature -15°C / +70°C
• Maximum short circuit temperature +160°C
• Standards: CEI 20-29, IEC 60228, CEI 20-11, EN 50363, CEI 20-22 II, CEI EN 60332-3-24 Cat.C, CEI UNEL 36762, CEI 46-5
• Data and voice transmission applications in civil and industrial systems
Package Contents:
• 250 meter roll of TRRZ04M250 cable
