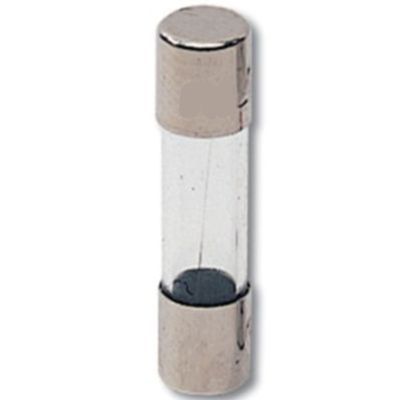

125 mA 250 V AC glass cylindrical fuse, fast (F curve), compact 5×20 mm, ideal for protecting small electronic circuits
Description
Miniature glass fuse from the Fusinorm series, designed to protect circuits with limited inrush currents, has a glass body with nickel-plated brass contacts and features a fast tripping characteristic (F), suitable for avoiding damage from current peaks.
The body features the logo, current, voltage, curve and approvals, the breaking capacity reaches approximately 35 A at 250 V AC, making it suitable for use on separate circuits in electronic devices or modules.
Datasheet
| Producer | Italweber |
| Guy | F 5x20 |
| Rated current (A) | 0.125 |
| Dimensions (mm) | ø 5 x 20 |
| Nominal tension | 250V |
| Certification | CE RoHS |
Min. quantity and many. order: 10 Packing quantity: 10/100
Properties
Cerifications:
