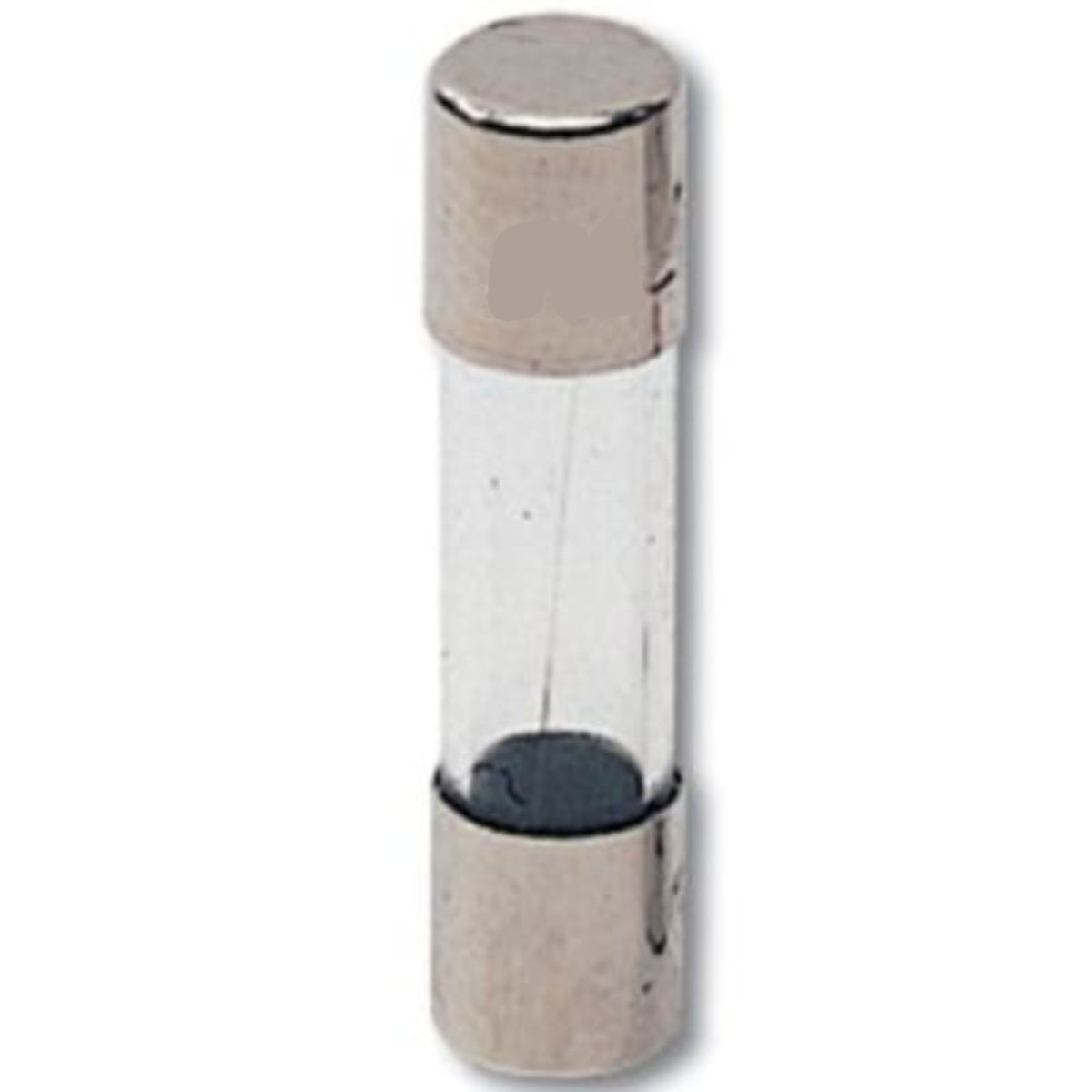

5 × 20 mm 1.25 A 250 V AC Glass Fuse, Time Delay (T) Type, 35 A Breaking Capacity, Ideal for Protecting Transformers, Motors and Sensitive Electronic Devices
Description
Miniature time-delay fuse, with glass body and nickel-plated brass contacts, designed to withstand initial current peaks (motor start-up, transformers), the T (time-delay) curve offers protection without premature tripping.
The logical packaging shows the company and plate markings, the interrupting power is approximately 35 A at 250 V AC.
Datasheet
• Glass cylindrical fuse type
• Dimensions 5 × 20 mm
• Rated current 1.25 A
• Rated voltage 250 V AC
• Characteristic T (delayed)
• Glass tube body
• Nickel-plated brass contacts
• Breaking capacity 35 A at 250 V AC
• Fusion indicator not present
Properties
Cerifications:
