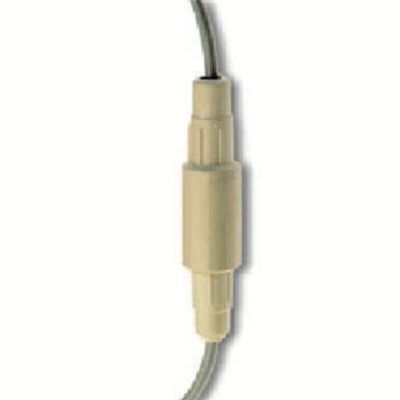

Flying fuse holder for 5×20 mm and 6.3×32 mm fuses, 10 A, 250 V, with 70 mm (1.5 mm²) leads, ideal for testing and portable use
Description
Fuse holder made of self-extinguishing plastic material (UL‑94 V0), compatible with miniature or rapid fuses in both formats.
Designed for laboratory, test or repair applications, it allows quick and safe connection of the fuse through screw terminals, terminated by 70 mm cables (1.5 mm² section).
The body has two pressure springs for fixing, while the contacts are made of brass, ensuring good conductivity and is suitable for currents up to 10 A and nominal voltage up to 250 V AC.
Datasheet
• Supported fuse sizes 5×20 mm and 6.3×32 mm
• Rated current 10 A
• Rated voltage 250 V AC
• Self-extinguishing plastic body material (UL‑94 V0)
• Brass contacts
• Cables included 2 × 70 mm, section 1.5 mm²
• Screw connection
• Fixing with pressure springs
Properties
Cerifications:
