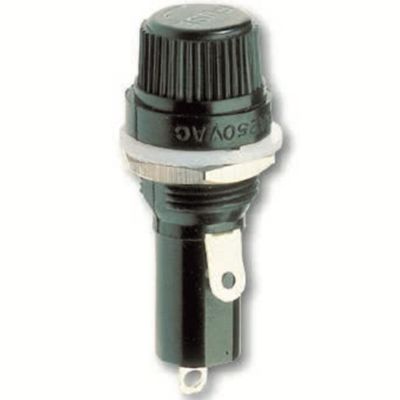

Panel fuse holder, for 6.3 × 32 mm fuses, 10/15 A 250 V AC, thermoplastic body, screw cap, category PC1
Description
Panel fuse holder designed for 6.3 × 32 mm format fuses, the body is made of self-extinguishing thermoplastic material, compliant with CEI 32‑6/6 and IEC 60127‑6 standards, while the contacts are made of nickel-plated brass.
Equipped with a screw cap for convenient insertion and removal of the fuse, the connection is made by soldering.
It reaches up to 15 A of nominal current and 250 V of operating voltage, category PC1, ideal for panel installations in industrial or civil environments.
Datasheet
• Compatible fuse 6.3 × 32 mm
• Rated current 10/15 A
• Rated voltage 250 V AC
• Self-extinguishing thermoplastic body (UL94‑V0)
• Nickel-plated brass contacts
• Screw cap
• Solder connection
• Category PC1
Properties
Cerifications:
