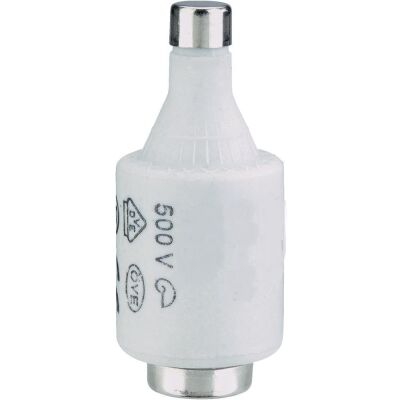

Italweber 1221016 - NDZ DII fast fuse 16A 500V

SKU: ITW1221016

Barcode: 8024873046509

Brand: Italweber

Diazed DII cartridge fuse, 16 A, 500 V AC/DC, characteristic F (fast), for general protection

€0.98pcs

€1.03pcs

percent 5%

You save €0.05pcs Promotion active until 27 September

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

D series fast fuse (DII format), suitable for protecting equipment and circuits in civil and industrial systems.

Made with a high-resistance soapstone body, filled with quartz sand, it mounts a copper fuse element with pressed nickel-plated brass capsules.

It offers rapid intervention and high breaking capacity, ensuring reliability against overcurrents and short circuits.

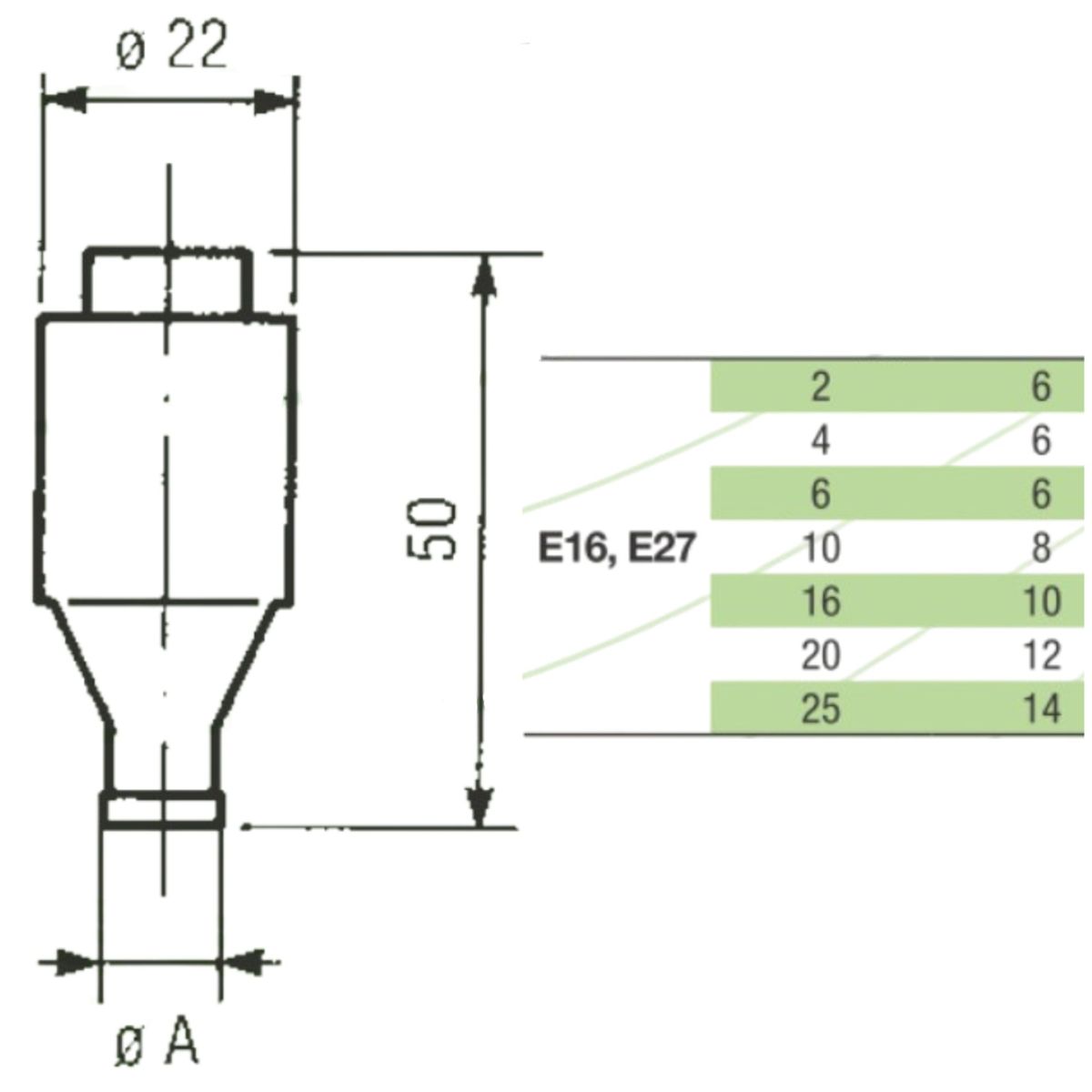

The dimensions are 22x50 mm, their breaking capacity is 50KA and they can also be used in direct current up to a maximum voltage of 400V DC.

• Diazed DII type fast (DII format)

• Rated current 16 A

• Rated voltage 500 V AC / DC

• Intervention characteristic F (fast)

• Steatite body with quartz sand

• Copper foil fuse element, nickel-plated brass capsules

• Breaking capacity ≥ 50 kA (Diazed standard)

• Step DII (Dimension II)
