Description

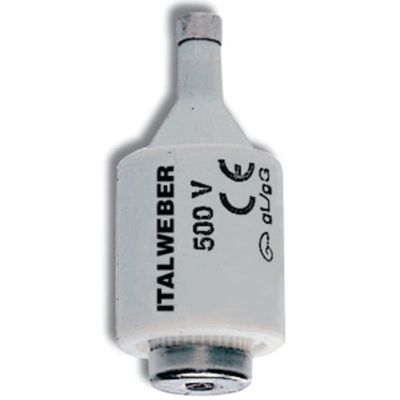

Diazed DT II series fuse with delayed action (gG) with dimensions 22x50 mm, designed to safely protect lines and equipment against overloads and short circuits.
The soapstone body offers high resistance to thermal and mechanical shocks, while the copper conductor and nickel-plated brass capsules guarantee long life and reliability.
It is compatible with E27 fuse holders and their breaking capacity is 50KA.
They can also be used in direct current up to a maximum voltage of 400 V DC and up to 500 V AC.
Datasheet
• Fuse type Diazed DT II
• Rated current 25 A
• Rated voltage 500 V AC / DC
• Tripping characteristic R (delayed)
• Steatite body with quartz sand
• Copper foil fuse element, nickel-plated brass capsules
• Step E27
• Breaking capacity ≥ 50 kA at 500 V
