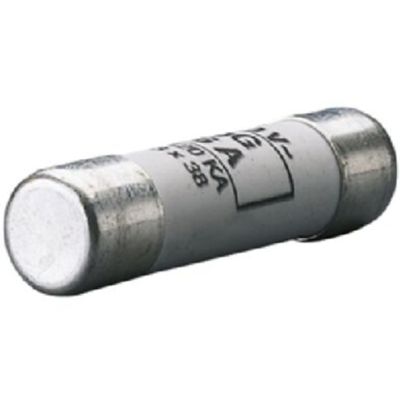

Cylindrical fuse 14 × 51 mm, rated current 6 A, voltage 690 V AC, gG curve
Description
gG characteristic fuse designed to ensure complete protection on civil and industrial lines, the steatite body, filled with quartz sand, offers high thermal resistance, while the silver-plated copper foil melting element and the double plated capsule prevent oxidation and maintain constant performance over time.
With breaking capacity up to 120 kA and compact CH14 format, it is ideal for protecting circuits with voltage up to 690 V AC
Datasheet
• Type CH14 gG
• Dimensions 14 × 51 mm
• Rated current 6 A
• Rated voltage 690 V AC
• gG intervention curve (general protection on lines and devices)
• Breaking capacity 120 kA
Properties
Cerifications:
