Description

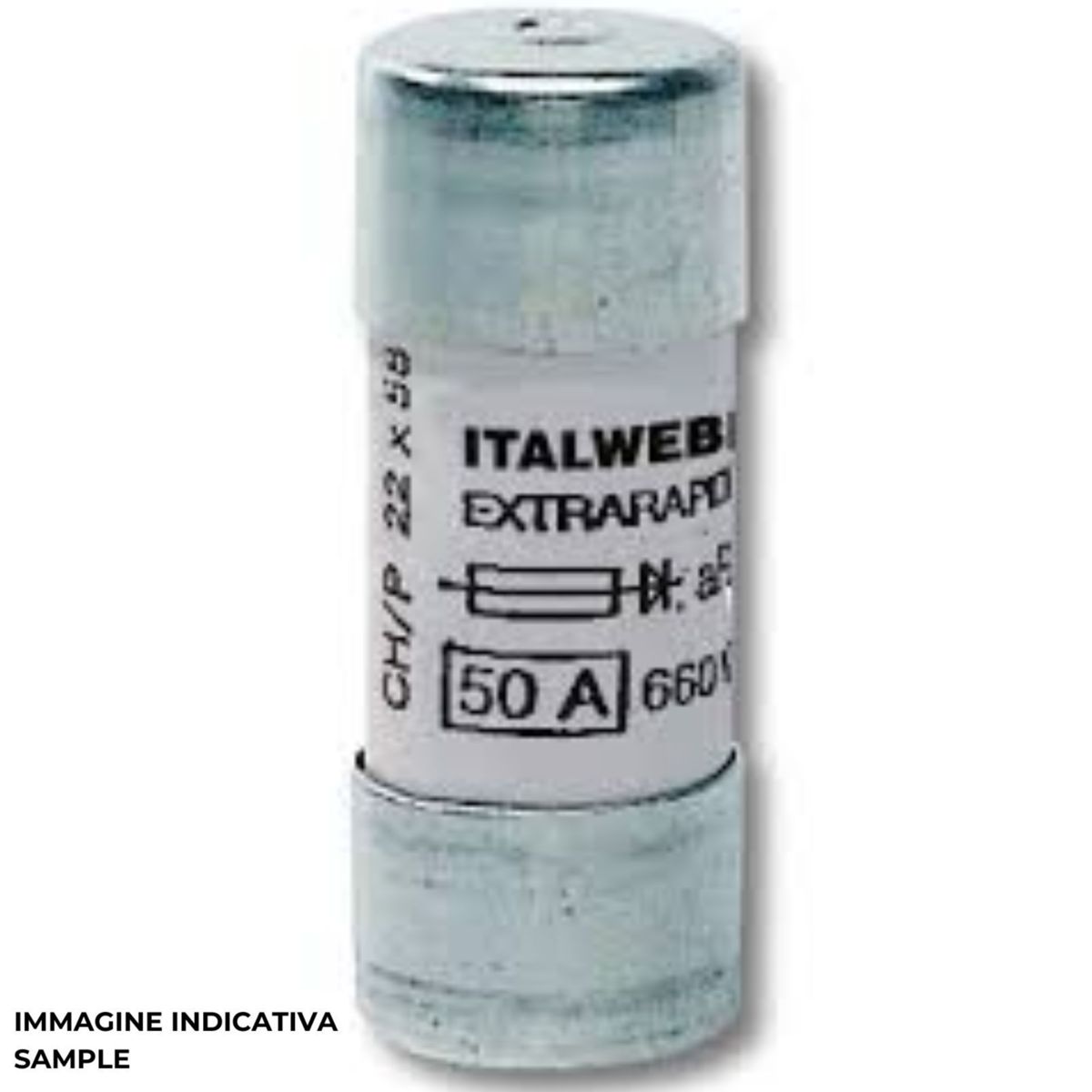

gG characteristic fuse designed to ensure complete protection on civil and industrial lines, the steatite body, filled with quartz sand, offers high thermal resistance, while the silver-plated copper foil melting element and the double plated capsule prevent oxidation and maintain constant performance over time.
With breaking capacity up to 120 kA and compact CH22 format, it is ideal for protecting circuits with voltage up to 690 V AC.
Datasheet
• Type CH22 gG
• Dimensions 22 × 58 mm
• Rated current 25 A
• Rated voltage 690 V AC
• gG intervention curve (general protection on lines and devices)
• Breaking capacity 120 kA
