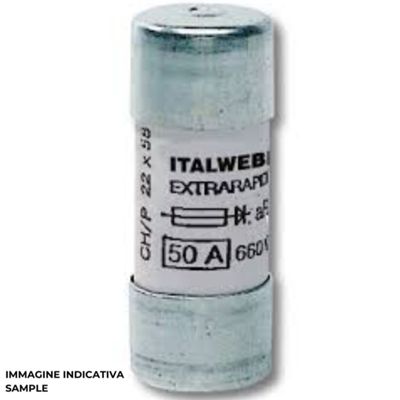

Italweber 1441050 - fuse CH22 gG 50A 690V

Italweber 1441050 - fuse CH22 gG 50A 690V

SKU: ITW1441050
Barcode: 8024873001171
Brand: Italweber
Cylindrical fuse 22 × 58 mm, rated current 50 A, voltage 690 V AC, gG curve
€2.75pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

gG characteristic fuse designed to ensure complete protection on civil and industrial lines, the steatite body, filled with quartz sand, offers high thermal resistance, while the silver-plated copper foil melting element and the double plated capsule prevent oxidation and maintain constant performance over time.

With breaking capacity up to 120 kA and compact CH22 format, it is ideal for protecting circuits with voltage up to 690 V AC.

Datasheet

• Type CH22 gG

• Dimensions 22 × 58 mm

• Rated current 50 A

• Rated voltage 690 V AC

• gG intervention curve (general protection on lines and devices)

• Breaking capacity 120 kA

Properties

Cerifications:
C E
