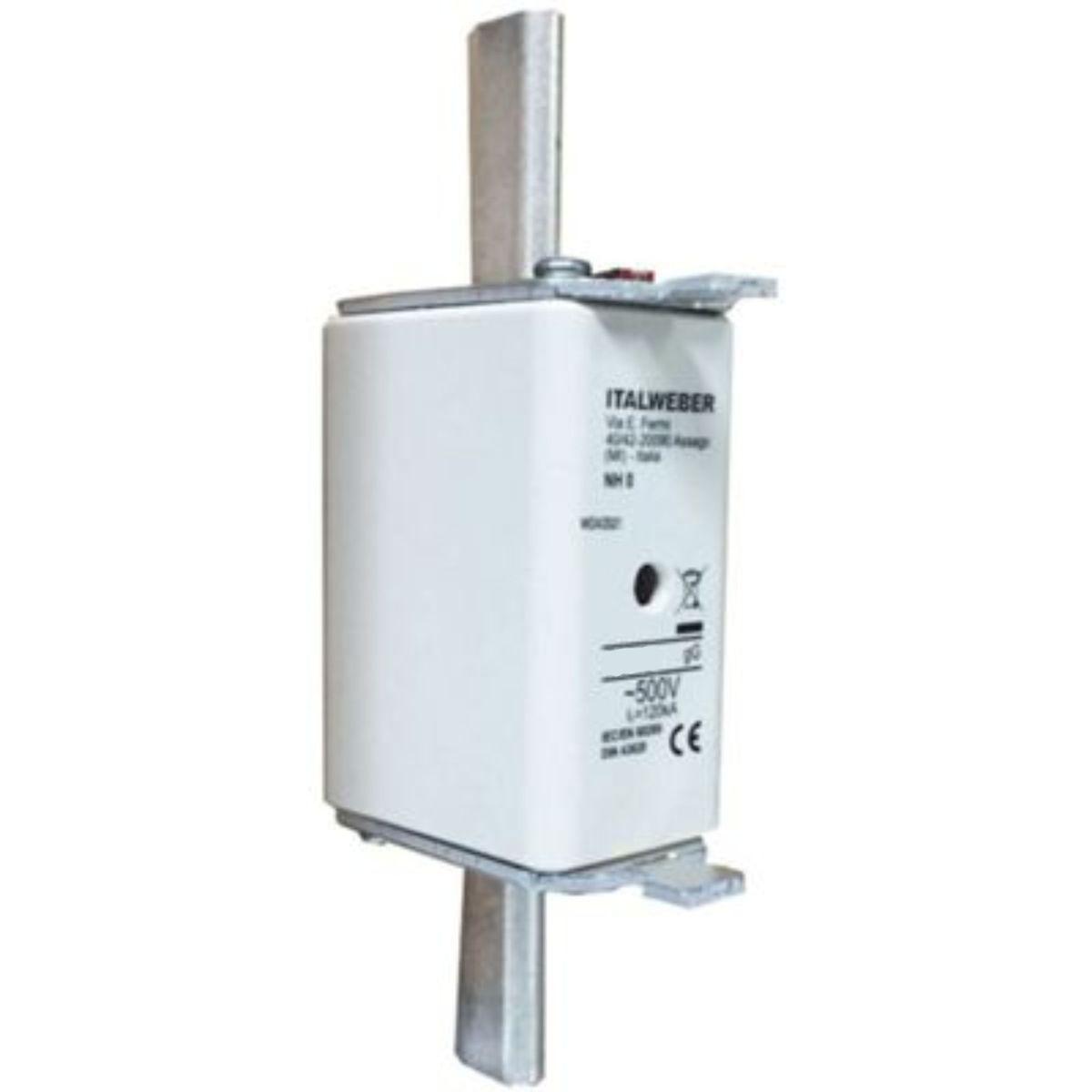

Industrial knife fuse NH0, 63 A, 500 V AC, gG curve, with double fusion indicator, for general protection of lines and equipment
Description
NH0 type knife fuse, characterised by a gG (general use) intervention curve, ideal for protecting industrial and civil lines and devices.
Made with a soapstone body filled with quartz sand and copper contacts (silver-plated), it offers high thermal resistance and long-lasting reliability.
It is equipped with a double fusion indicator (central and upper), which can also be connected to a microswitch for remote warning of the intervention.
It has a breaking capacity of up to 120 kA at 500 V.
Datasheet
• NH0 knife type
• gG curve (general use)
• Rated current 100 A
• Rated voltage 500 V AC
• Steatite body with quartz sand
• Copper / silver-plated copper contacts
• Double fusion indicator (center + top)
• Breaking capacity 100–120 kA
Properties
Cerifications:
