Description

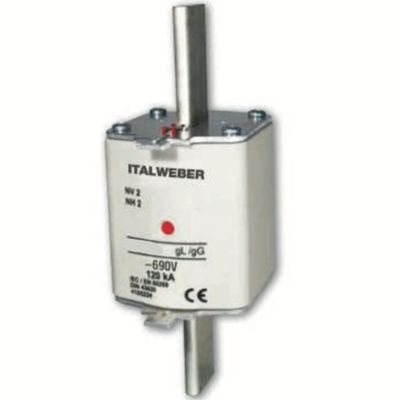

NH2 fuse of category gG, designed for general protection in industrial and civil environments.
The soapstone body, filled with quartz sand, guarantees high thermal and mechanical resistance.
The copper or silver-plated copper fuse element is welded to the contact blades and includes a double signalling device (central and upper), for immediate identification of the intervention, also via a tactile striker.
The post is ready for easy mounting on standard NH2 fuse holders.
Breaking capacity 100–120 kA at 500 V AC.
Datasheet
• NH2 knife type
• Rated current 400 A
• Rated voltage 500 V AC
• gG curve (global protection on lines and equipment)
• Body material in steatite with quartz sand
• Copper or silver-plated copper contacts
• Double fusion indicator (central + upper)
• Tactile indicator (striker) Yes
• Breaking capacity 100–120 kA (500 V AC)
