Sold by the meter, in skeins of 50
Insulation grey color 6mm
Description

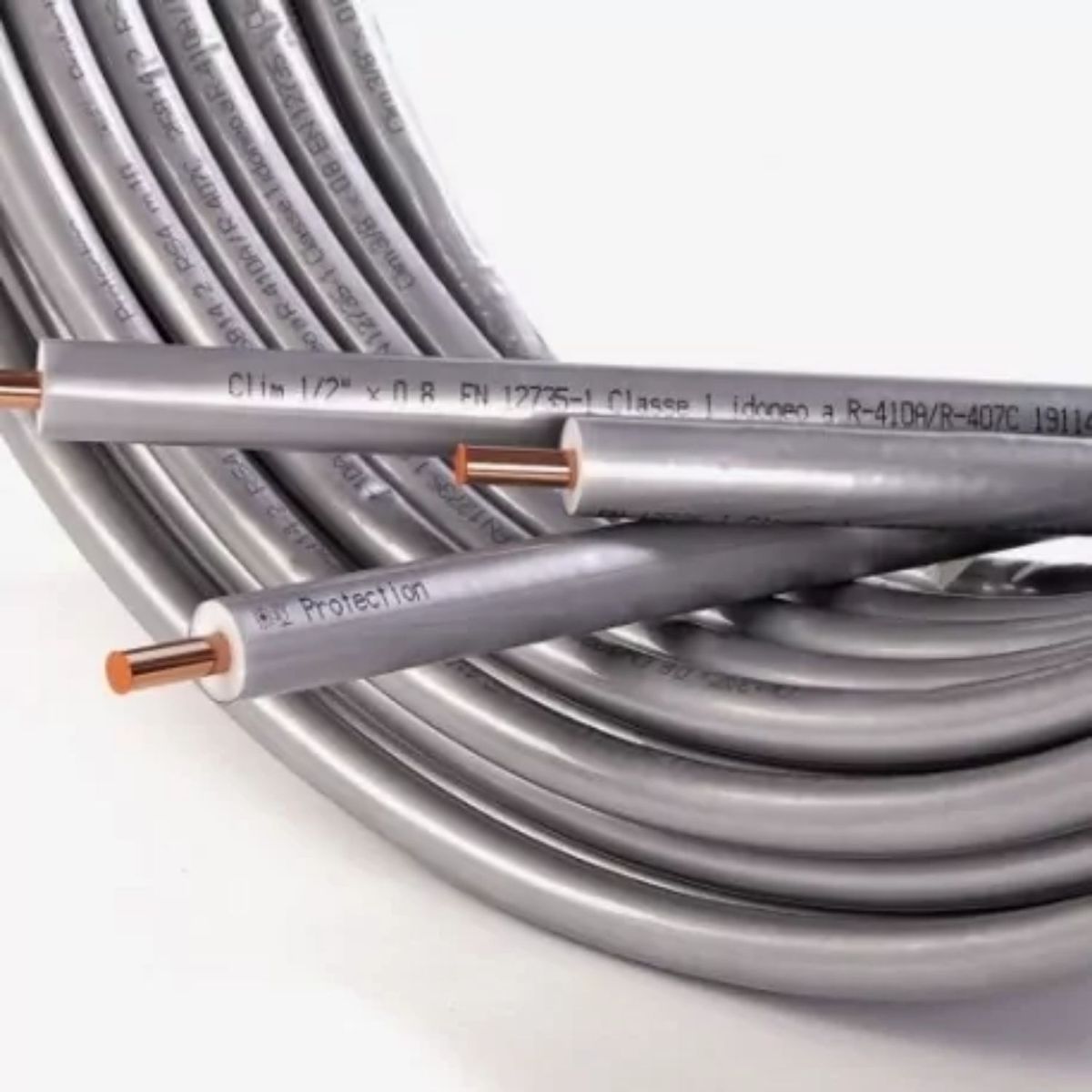

KME SMISOL Clim Platinum is a coated copper tube, specifically developed for the transport of refrigerant gases such as R32, R410A and R407 and with a diameter of 1/4" (6.35) and a wall thickness of 0.8 mm, it is supplied in rolls of 50 meters.
The external coating offers excellent thermal conductivity and a high resistance factor to the diffusion of water vapour, preventing the formation of condensation and improving the energy efficiency of the system.
Testing according to ASTM G-155 has demonstrated the suitability of the tube in areas with strong solar radiation, with no signs of degradation after exposure.
Datasheet
• Copper clad material
• Dimensions 1/4" (6.35)x0.8 mm
• 6 mm grey insulation
• Application in air conditioning and refrigeration systems
• Thermal conductivity λ ≤0.040 W/m°C
• Water vapour diffusion resistance factor (µ) > 15,000
• Average density 33 kg/m³
• Resistance to external chemical agents
• Non-flammable
