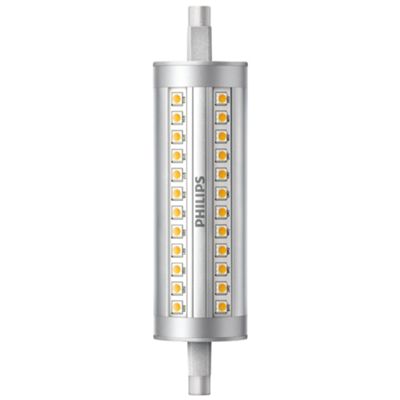

Product photos are indicative only
R7S, 15000 h, 50000X, 14-120W, 2000 lm, 4000 K, 220 - 240 V, 50/60 Hz, 95 g
Description
CorePro R7S is a retrofit replacement for traditional double-ended linear R7S lamps.Its ‘light all around’ design delivers light that is just like a halogen lamp. The deep dimming function enables a cosy ambience when using a dimmable fixture.
Datasheet
| Weight & dimensions | |
|---|---|
| Diameter | 2.9 cm |
| Length | 11.8 cm |
| Weight | 95 g |
| Power | |
| Energy efficiency class | A++ |
| Input frequency | 50/60 |
| Bulb current | 75 mA |
| AC input voltage | 220 - 240 |
| Energy consumption (1000 hours) | 14 kWh |
| Technical details | |
| Bulb power | 14 W |
| Fitting/cap type | R7s |
| Luminous flux | 2000 lm |
| Colour temperature | 4000 K |
| Bulb lifetime | 15000 h |
| Luminous efficacy | 142.86 lm/W |
| Dimmable | Y |
| Equivalent bulb power | 120 W |
| Color Rendering Index (CRI) | 80 |
| Power factor | 0.8 |
| Warm-up time to 60% light | 0.5 |
| Quantity | 1 |
| Rated power | 14 W |
| Number of switch cycles | 50000 |
| Start-up time | 0.5 s |
| Colour consistency | |
| Colour code | 840 |
| Packs per box | 10 |
| Quick order code | 71406500 |
| LLMF - end nominal lifetime | 70% |
| T-case maximum | 100 °C |
| Full product code | 871869671406500 |
| Order product name | CorePro LED linear D 14-120W R7S 118 840 |
| 12NC Logistic code(s) | 929001353702 |
| Colour | |
| Light colour | Cool white |
| Colour of product | Grey |
