Description

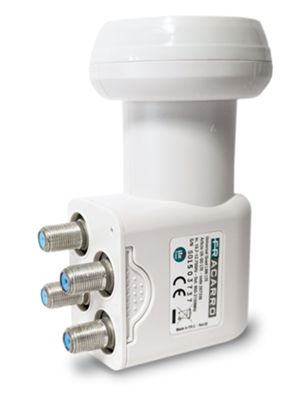

The Fracarro UX-QD-LTE LNB illuminator is designed to offer excellent signal quality, ideal for individual installations and complex centralized multi-user systems. Thanks to its low phase noise and high reliability, it is perfect for receiving high definition (HD) channels.
The standard 40mm mount design makes it compatible with most satellite dishes without the need for adapters, making installation easy.
It is LTE Ready, ensuring stable transmission even in the presence of mobile signals.
Datasheet
• Fracarro brand
• Model UX-QD-LTE
• Number of outputs 4 independent
• Gain 57 dB
• Noise figure 0.5 dB
• Local oscillator 9.75/10.6 GHz
• Input frequency 10.7-12.75 GHz
• Power supply 12-20 Vdc
• Maximum absorption 170 mA
• Operating temperature -30°C to +60°C
• Dimensions 140x113x65 mm
