Description

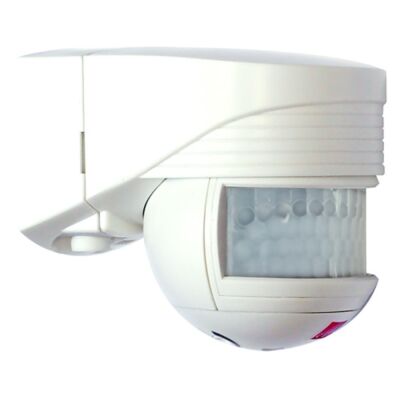

Position detector with 140° detection area and rotating sensor head.
The easy assembly with quick coupling support helps in installation and the possibility of mounting on round boxes diam. 65 is particularly comfortable.
The detection area can be reduced by covering slats.
Datasheet
• 230V power supply
• 140° horizontal detection area (wall mounting)
• Maximum range of action 12 m transversally and 4 m frontally
• Tangential detection area 170 m² / 2.5 m fixing height
• Recommended installation height 2 > 3 m
• Contact load 1000 W cos φ = 1 - 500 VA cos φ = 0.5 - 200 W LED
• Switch-off delay: 4 s – 20 min
Downloads
Properties
Cerifications:
