Description

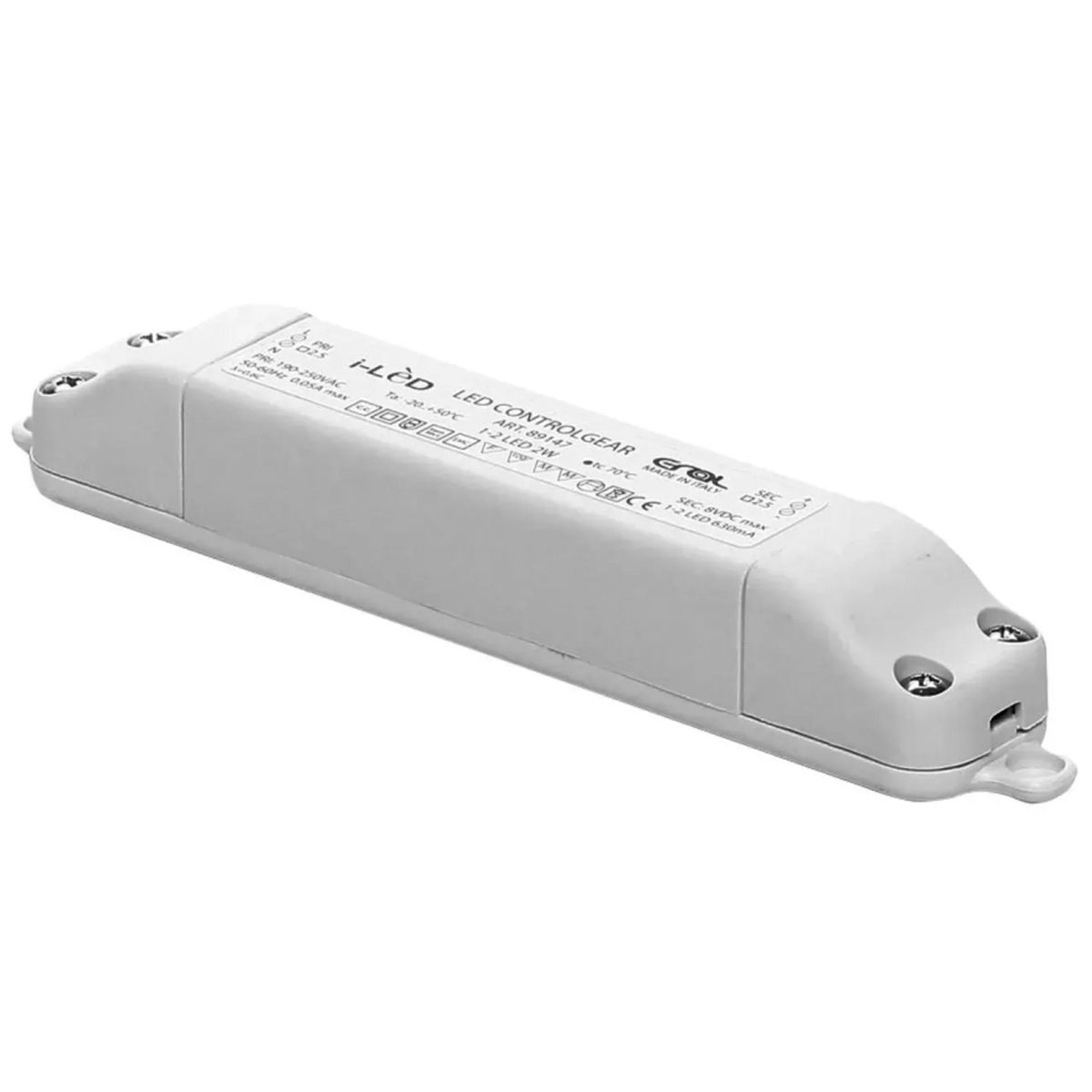

The Linea Light 89147 driver is an electronic power supply dedicated to LEDs, designed to supply a constant current of 630 mA on voltages from 3 to 7 V.
It is suitable for driving 1–2 LEDs of 2 W each (range 2–4 W) and has a slim format for discreet installations, integrated protections against short circuits and overloads, and is compatible with 220-240 V AC power networks.
It is widely used in compact lighting fixtures where space for the driver is limited.
Datasheet
• Type Slim electronic LED power supply with constant current
• Output current 630 mA
• Output voltage 3-7 V DC
• Maximum power 4 W (1-2 LEDs of 2 W each)
• Input voltage 220-240 V AC 50/60 Hz
• Typical efficiency 80%
• Short circuit, overload and thermal protections with automatic reset
• Degree of protection IP40 (indoor use)
• Dimensions 13.8 × 2.9 × 2.0 cm
• Driver type On/Off non-dimmable
• Insulation class II (double insulation)
