Description

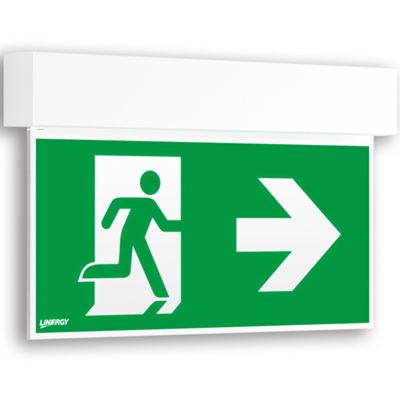

The Linergy AS22F30ABR device is an emergency LED indicator belonging to the Astra series, designed for lighting escape routes in theatres, public halls or other civil environments.
It features a Rest Mode operating mode and can be configured between SE (emergency only) or SA (always on); it remains off during normal electrical operation and is activated only in the event of a power failure.
Available with a battery life of 1, 2 or 3 hours, it offers pictogram visibility of up to 22 metres thanks to a high-efficiency LED source and is powered by a 3.2 V 1.5 Ah Li‑FePO4 battery that recharges in approximately 12 hours, consuming just 2.15 W when the battery is fully charged.
It is compatible with ceiling, wall, flag or false ceiling mounting and can include PVC pictograms supplied.
Datasheet
• SE/SA Mode - Rest Mode
• Autonomy 1 h / 2 h / 3 h selectable
• Pictogram visibility 22 m
• Power consumption 2.15W (with charged battery)
• Li‑FePO4 battery 3.2 V 1.5 Ah
• Degree of protection IP40
• Body color white
• Ceiling, wall, flag, false ceiling mounting, flush mounting on 503 box
