Description

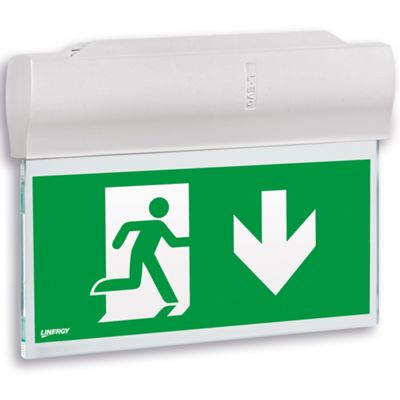

The Linergy LV1201, also known as LV22N10ABR, is an LED emergency signaling device designed with Rest Mode operating mode, which allows it to remain off during normal electrical operation and activate only in the event of a blackout.
Configurable as both SE (emergency only) and SA (always on) with the possibility of manual interruption via a switch, it offers 1 hour of autonomy thanks to the 4.8 V 0.5 Ah Ni‑Cd battery, rechargeable in approximately 12 hours.
The power consumption is 1.7 W, while the visibility of the pictogram reaches up to 22 metres, in compliance with the EN 1838 regulation.
With IP40 protection rating, IK08 mechanical resistance, class II insulation and operating temperature from 0°C to +40°C, it is compatible with ceiling, flag, wall or flush-mounted installations in a 503 box using specific accessories.
The product comes with a PVC pictogram kit included.
Datasheet
• SE/SA Mode – Rest Mode (emergency or permanent operation only)
• 1 h autonomy
• Power consumption 1.7 W (with charged battery)
• Ni-Cd battery 4.8 V 0.5 Ah
• Pictogram visibility up to 22 m
• Degree of protection IP40
• Mechanical resistance IK08
• Battery charging time 12h
• Ceiling, flag, wall, recessed installation on 503 box (with accessories)
• Operating temperature 0 °C ÷ +40 °C
• Insulation class II
• Glow wire rating 850 °C
