Description

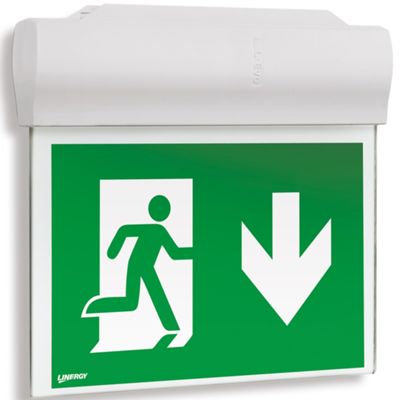

The LV1204 model, formerly known as the LV32N30ABR, is an LED emergency beacon designed to provide visibility up to 32 metres, making it ideal for escape routes in large spaces.
It operates in Rest Mode SE/SA, which allows it to be powered permanently or only in emergency situations via configuration, guaranteeing flexibility to security systems.
It is powered by a 4.8 V 0.5 Ah Ni‑Cd battery, with a battery life of 1 hour, and recharges in approximately 12 hours, the absorption with a charged battery is contained at 1.7 W, making it particularly efficient.
The signaler is classified IP40 and has IK08 mechanical resistance, making it suitable for internal installations on ceilings, flagstones, walls or flush-mounted in 503 boxes.
Datasheet
• SE/SA Mode - Rest Mode (emergency only or always on)
• 3 h autonomy
• Pictogram visibility 32 m
• Power consumption 1.7 W (with charged battery)
• Ni‑Cd battery 4.8 V 0.5 Ah
• Degree of protection IP40
• Mechanical resistance IK08
• Installation on ceiling, flag, wall, recessed on 503 box (accessories A031–A035)
