Description

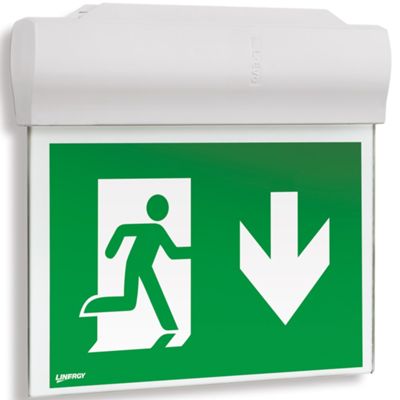

The Linergy LV1902, also known as LV32000IBS, is a LED indicator designed for systems powered by a central battery (“L” in the catalogue) which, thanks to Rest Mode technology, remains off during normal electrical operation, activating only in the event of a blackout, to optimise autonomy and reduce wear.
It is designed to ensure pictogram visibility up to 32 metres, ideal for escape routes in public spaces or large buildings.
With a low power consumption of 1.2W, it supports uncompromising operational reliability while maintaining a low energy emission profile, the design features IP40 protection rating, IK08 resistance, class II insulation and operating temperatures compatible with residential environments.
Compatible with Lyra Evo mounting accessories such as flag, ceiling, wall, PVC pictogram, suspension, false ceiling and stainless steel kit brackets.
Datasheet
• Rest Mode, activation in blackout
• Pictogram visibility 32 m
• Power consumption 2.4 W
• IP40 protection rating
• Mechanical resistance IK08
• Insulation class II
• Ceiling, flag, wall, suspension, false ceiling installation (accessories A031, A033, A032, A034...)
