Description

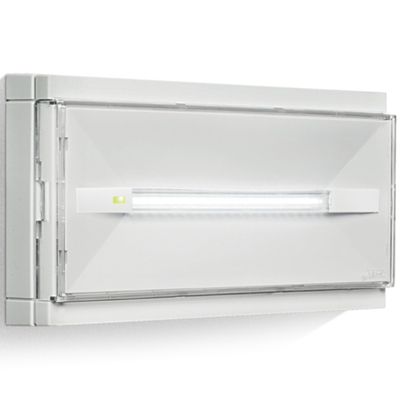

The Linergy PS24F13ABR, also known as the PS1208, is part of the Prodigy line and adopts the Rest Mode operating mode, which keeps the device inactive during normal electrical operation and activates it only in the event of a blackout.
Designed for environments where high performance is required, it offers a battery life of 1.5 hours with a luminous flux of 320 lm in emergency mode and approximately 200 lm in mains mode (SA), equipped with a 3.2 V 1.5 Ah Li‑FePO4 battery, a maximum consumption of only 3.6 W guaranteed with a charged battery, and complete IP65 and IK08 protection, it is ideal for both indoor and outdoor installations.
The pictogram is visible up to 17 metres and complies with European emergency lighting standards (EN 60598‑1, EN 60598‑2‑22, etc.).
Datasheet
• Rest Mode (SE/SA) operating mode
• Battery life 1.5 h
• Emergency luminous flux 320 lm
• Luminous flux (SA) 200 lm
• Power consumption 3.6 W (with charged battery)
• Li‑FePO4 battery 3.2 V 1.5 Ah
• IP65 protection rating
• Mechanical resistance IK08
• Operating temperature +5°C ÷ +40°C
