Description

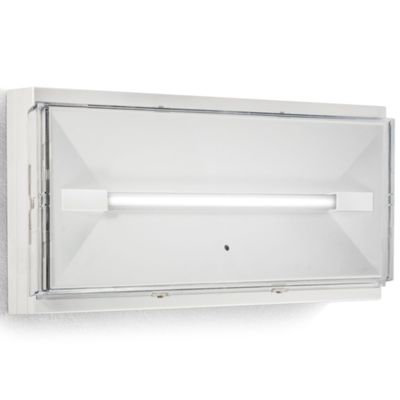

The Linergy PX1105, known as the PX24N10EBI, is part of the Prodigy XL range and operates in Inhibit mode, activating only in the event of a blackout and remaining off during normal operation.
Thanks to the IP42 protection rating and IK07 mechanical resistance, it can be used indoors even in the presence of humidity or dust.
With a 1-hour battery life, it provides an average luminous flux of 560 lumens, ensuring visibility on escape routes or safety zones.
Power consumption when fully charged is just 0.2W, making it very energy efficient. It is powered by a 6.4V 1Ah Li‑FePO4 battery, with a charging time of approximately 12 hours and diagnostic battery status reporting.
Wall or ceiling mountable, it supports various mounting modes even with optional frames/accessories.
Datasheet
• Inhibit mode (emergency only)
• 1 h autonomy
• Average emergency flow 560 lm
• Power consumption 0.2 W (with charged battery)
• Li‑FePO4 battery 6.4 V 1 Ah (charging ~12 h)
• Degree of protection IP42
• Mechanical resistance IK07
• Wall or ceiling installation, optional mounting accessories
