Description

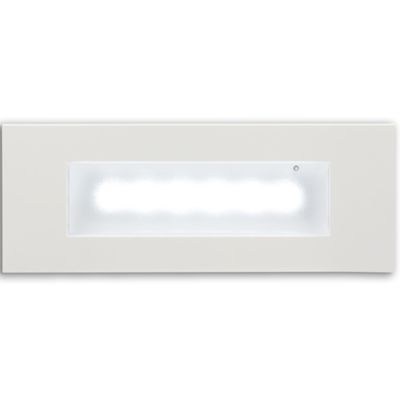

The Linergy SB100N30EBR, known as Seven Glass, is a LED indicator light for flush mounting in a 506 box, ideal for domestic systems in internal environments with integrated satin glass finishes.
Designed in Rest Mode SE, the device remains off during normal electrical operation and is activated only in the event of a power failure, guarantees a 3-hour autonomy, emits a constant luminous flux of 60 lm, and is powered by a 3.2 V 0.55 Ah Li‑FePO4 battery, rechargeable in approximately 12 hours.
The nominal consumption with a charged battery is 0.8 W, while the IP40 protection rating and minimalist design make it perfect for flush-mounted installation on walls with a finished surface.
The kit is compatible with mounting accessories such as plasterboard/shim kit (code A322) and remote control for Rest Mode management (code A350)
Datasheet
• Rest Mode SE (emergency only)
• 3 h autonomy
• Average flow 60 lm
• Power consumption 0.8 W (with charged battery)
• Li‑FePO4 battery 3.2 V 0.55 Ah
• Degree of protection IP40
• Built-in installation on 506 box with integrated glass diffuser
• Compatible accessories A322 (plasterboard kit), A350 (Rest Mode remote control)
