Description

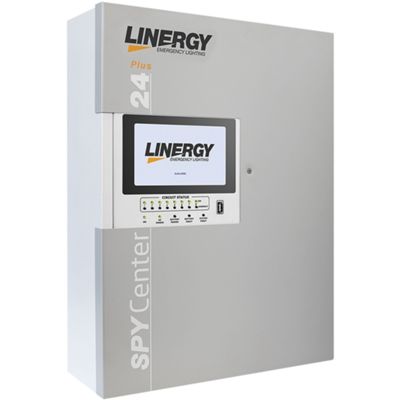

The Linergy SC24V32A6PLUS, part of the Spy Center 24 Plus series, is a single-phase SELV system that manages up to 6 power circuits for emergency LED luminaires, powered at 230 V AC, it provides 24 V DC with a maximum power of 432 W.
Equipped with LiFePO4 batteries (2×12.8 V 32 Ah) with an autonomy of 1 h at full load (432 W), 2 h (320 W) and 3 h (220 W), it can be installed on the wall in a combined cabinet and complies with the EN 50171 standard for emergency systems.
Datasheet
• Selectable autonomy 1 h / 1.5 h / 2 h / 3 h (SA/SE)
• Power consumption 2.3 W
• Luminous flux 250 lm (constant in all modes)
• Li‑FePO4 battery 3.2 V, 1.5 Ah
• Charging time is mainly 2 hours standard
• IP65 protection rating (total protection against dust and water)
• Integrated “Connect” mode function for configuration and networking
• Wall or flag mounting with specific accessories (kit A005, A047, A092…)
