Description

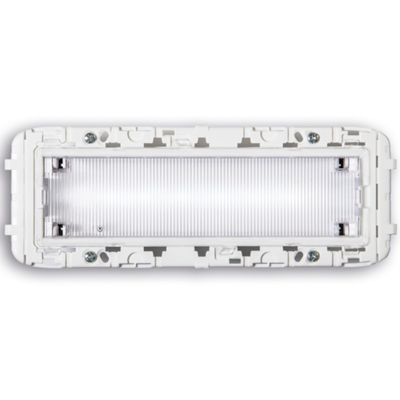

The Linergy SG100N30EBR (code SG1201) is a “Rest Mode” emergency LED luminaire designed for recessed installation in a 506 box.
Under normal conditions it remains off (“sleep mode”), activating only in the event of a blackout with a minimum flow of 60 lm and a battery life of 3 hours.
It is equipped with a 3.2V/0.55 Ah Li‑FePO4 battery, consumes only 0.8 W when the battery is charged and offers a diagnostic indicator, IP40 protection
Datasheet
• Rest Mode function, SE mode
• 3 h autonomy
• Power consumption 0.8 W (battery charged)
• Emergency luminous flux 60 lm
• Li-FePO4 battery 3.2 V ‑ 0.55 Ah
• Charging time 12 h
• Power supply 230 V AC
• Insulation class II
• IP40 protection rating
• Operating temperature from 0 °C to +40 °C
• White color
• Glow wire 850 °C
• Flush mounting on 506 box
