Description

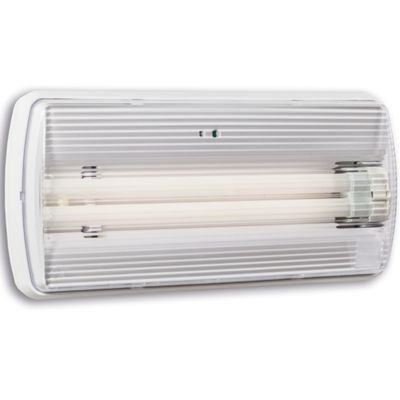

ST11N10EBI recessed or wall-mounted fluorescent emergency luminaire with Inhibit function, which activates only in the absence of mains power, powered by Ni‑Cd 6 V 0.8 Ah, guarantees one hour of autonomy with a minimum luminous flux of 176 lm and absorbs approximately 3 VA at 230 Vac.
The product complies with the EN 60598-1 and EN 60598-2-22 standards, is equipped with a green LED indicator for mains presence, IP40 protection, IK07 mechanical resistance, installation on normally flammable surfaces and an operating temperature of 0°C to +40°C.
It is compatible with mounting accessories such as STEP frames, pictograms and 45° kits for directional signalling.
Datasheet
• 1 × 11 W 2G7 tube
• 1 h autonomy
• Emergency luminous flux 176 lm
• Ni‑Cd battery 6 V 0.8 Ah
• Charging time 12 h
• Power consumption approximately 3 VA (230 V AC)
• Degree of protection IP40
• Mechanical resistance IK07
• Surface or flush mounting on 506 box; frame and pictogram accessories available
• Operating temperature 0°C ÷ +40°C
