Description

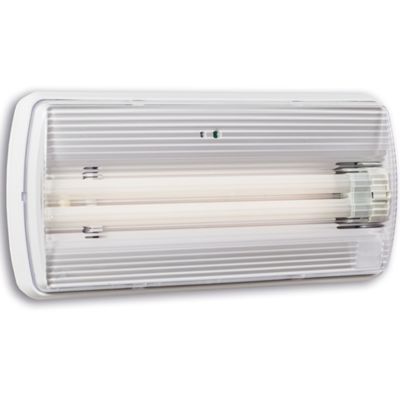

ST18N10EBI fluorescent emergency luminaire developed for indoor use in Inhibit mode which remains off under normal conditions and activates only in the event of a blackout.
It is equipped with a compact 18 W tube (2G11) and a 6 V 0.8 Ah Ni‑Cd battery, which guarantees an autonomy of approximately one hour, delivering a minimum luminous flux of 212 lumens compliant with the EN 60598‑2‑22 standard.
Designed according to safety standards, it features IP40 protection rating, class II insulation and IK07 mechanical resistance.
The device supports various installation methods, including wall, ceiling, flag and recessed with a 45° inclination using dedicated accessories.
Datasheet
• 1 × 18 W 2G11 tube
• 1 h autonomy
• Emergency luminous flux 212 lm
• Ni‑Cd battery 6 V 0.8 Ah
• Charging time 12 h
• Power supply 230 V AC
• Insulation class II
• IP40 protection rating
• Mechanical resistance IK07
• Operating temperature 0°C ÷ +40°C
• Glow wire 850°C
• Flush-mount installation Sf/Flag/45° flush-mount (with accessories A005, A047, A092…)
