Description

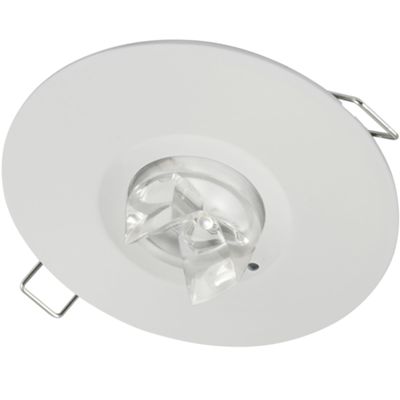

VA03F20EBR “Rest-Mode” type LED emergency luminaire (emergency mode only, without permanent light), with IP65 protection rating, suitable for outdoors or humid environments.
It guarantees a 2-hour battery life, with energy consumption of just 0.7 W and an average luminous flux of 750 lm (NP/SE mode), compliant with the EN 60598-2-22 standard, it is equipped with a 6.4 V 1.8 Ah Li-FePO4 battery that can be recharged in approximately 12 hours.
Ideal for suspended ceiling or wall installations, includes ceiling mounting accessories and signalling kit.
Degree of protection IP65 (spotlight), IP20 (electronic module).
Datasheet
• Selectable autonomy 1 h / 1.5 h / 2 h / 3 h (SA/SE)
• Power consumption 2.3 W
• Luminous flux 250 lm (constant in all modes)
• Li‑FePO4 battery 3.2 V, 1.5 Ah
• Charging time is mainly 2 hours standard
• IP65 protection rating (total protection against dust and water)
• Integrated “Connect” mode function for configuration and networking
• Wall or flag mounting with specific accessories (kit A005, A047, A092…)
