Long life wall-mounted helical extractor fan PUNTO EVO ME 100/4" LL








Description
The fan motor unit, integrated into the motor support, is enclosed in a plastic cylinder that can be entirely housed in the destination pipe.

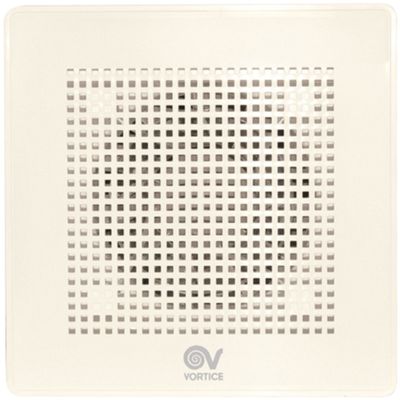

The front panel, the motor support and the detachable non-return valves are made of shock-proof and anti-UV ABS thermoplastic resin.
The impeller and motor support have been designed to guarantee high performance, low consumption and reduced noise emissions.
Guaranteed to operate 30,000 hours continuously without mechanical problems, thanks to the motor equipped with ball bearings.
IP45 protection rating.
Datasheet
• Wall mounted helical extractor fan
• Nominal diameter 100 mm
• Air flow 65–95 m³/h
• Thermally protected AC motor, with shaft mounted on ball bearing supports
• Number of speeds 2 (controlled by electronic board)
• Integrated non-return valve
• White UV-resistant plastic resin material
• Wall installation
• Applications Bathrooms, kitchens, small residential environments
