Description
round recessed spotlight Ø140mm for LED lamps (not supplied) with IP67 protection rating for floor installation with mandatory outer casing, or false ceiling installation with specific fixing kit accessory.
The body is made of die-cast aluminium (ADC12) subjected to anodizing treatment, while the frame is made of AISI 304 stainless steel Ø140mm, 2.5mm thick, subjected to micro-shot peening.
The maximum load capacity is 2500kg at a speed of 20km/h and the diffuser in tempered flat glass is transparent, extra-clear, 8mm thick.
The outer casing is composed of a lower cap, upper cap and body to facilitate cementation with silicone gaskets and steel screws.
The tilting optical group varies ±15° and the GU10 lamp fitting with maximum power of 35W with maximum lamp size Ø50xL56mm.
The outer casing has a PG9 plastic cable gland supplied for connection to the power line via a H05RN-F 3x1mmq cable pre-connected to the appliance (40cm).
Datasheet
• Spotlight with outer casing
• Maximum load 2500kg
• Model DRACMA 140
• GU10 lamp not included
• IP67 protection rating

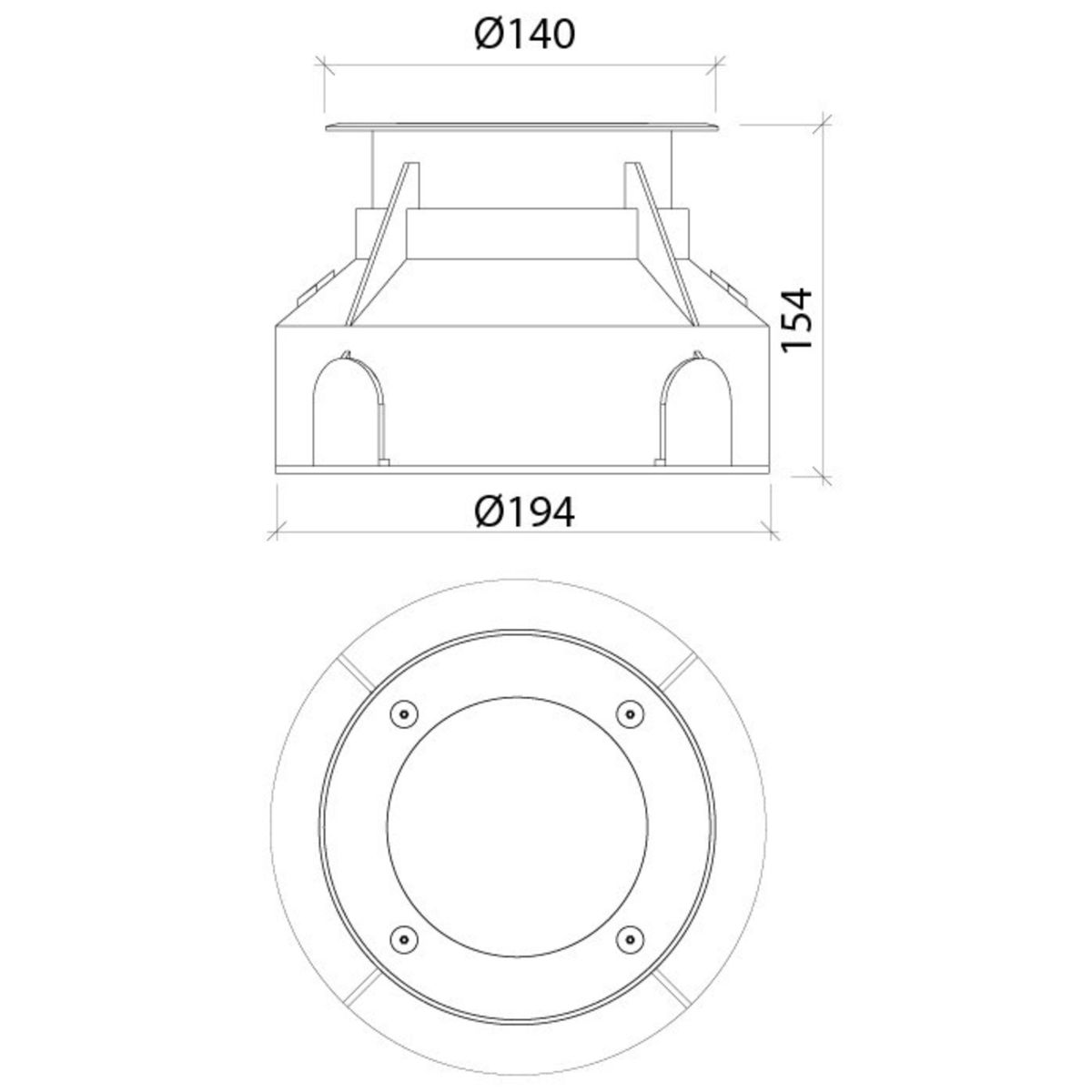

• Frame length 14.0 cm
• Base width 19.4 cm
• Height 15.4 cm
Properties
Bulb included: |
No
|
Lamp connection: |
GU10
|
Maximum lamp power: |
35
|
Degree of protection: |
IP67
|
Diffuser: |
Transparent
|
Warnings: |
|
