Description

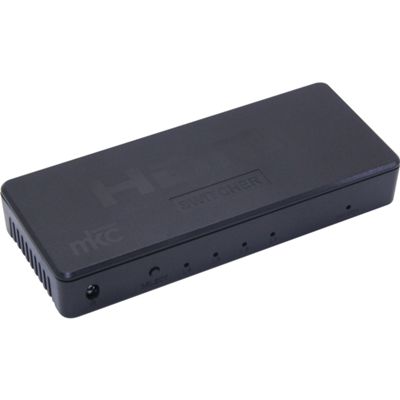

The MK‑DSW4‑M lets you easily switch between four HDMI sources (set-top box, console, player, etc.) to a single TV or projector, using either manual buttons or the included IR remote control.
In addition to handling signals up to 4K @ 30 Hz, it also supports 3D, 24/30/36-bit Deep Color, and digital audio formats (DTS‑HD, Dolby‑TrueHD, DTS, Dolby‑AC‑3, DSD).
It can also be used to regenerate the signal at the end of a long HDMI cable, extending the range up to 8m input and 8m output (AWG26 cable).
Powered via USB 5V / 1A (cable included), it features a slim chassis (142 × 58 × 22 mm) and low weight (~80 g)
Datasheet
• HDMI 1.4b standard
• Resolution up to 4K×2K @ 30 Hz; 3D support
• Deep Color 24/30/36 bit
• Supported audio DTS‑HD / Dolby‑TrueHD / DTS / Dolby‑AC‑3 / DSD
• 340 MHz band (TMDS); max 3.4Gbps
• Supported input/output wiring length ≤ 8 m (AWG26)
• Manual key controls + IR remote control
• Power supply 5 V - 1 A via USB (cable included)
• Dimensions 142 × 58 × 22 mm
• Operating temperature –15 °C ÷ +53 °C
