Description

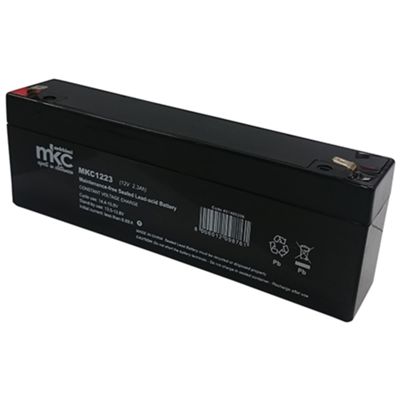

The Melchioni MKC1223 battery uses AGM technology with gas recombination, ensuring operation in both buffer and cyclic use, without the need for refilling and completely resealable.
Suitable for emergency, UPS, telecommunications and alarm system applications, it offers long life with high performance in terms of peak current and low internal resistance (~90 mΩ).
Datasheet
• Pb‑AGM VRLA technology, recombined gases
• Nominal voltage 12 V
• Capacity 2.3 Ah (20 h)
• Faston terminals 4.8 mm (T1)
• Dimensions 178 × 35 × 60 mm (height with terminals 66 mm)
• Buffer charging: 13.5–13.8 V
• Cyclic charging 14.4–15.0 V
• Max initial charge current ≤ 1/3 C (~0.77 A)
• Internal resistance ~90 mΩ
• Operating temperature –15 °C ÷ +50 °C
• UPS, alarm, power reserve, signal, security applications
