Description

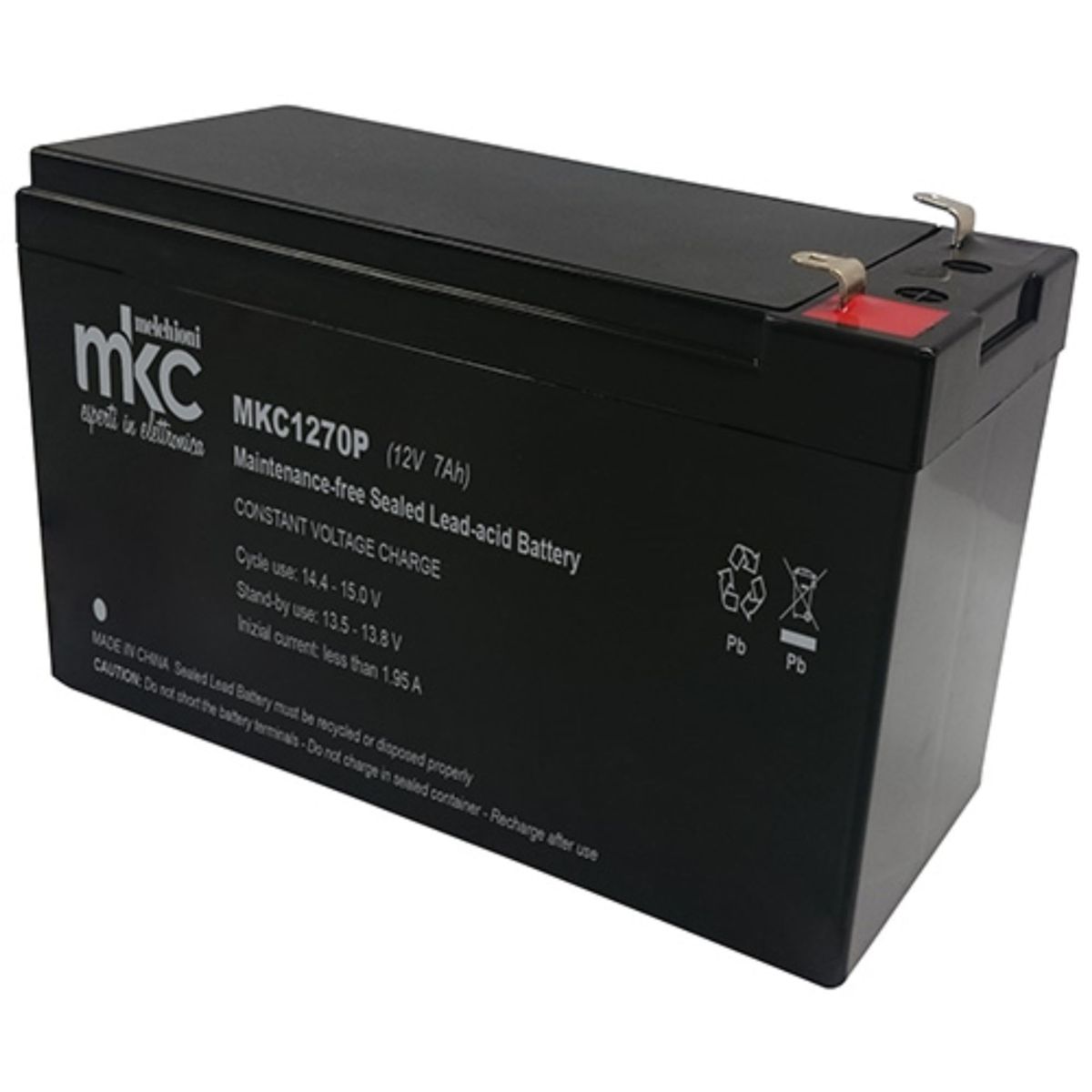

Sealed lead acid rechargeable battery (VRLA AGM) that guarantees high reliability and long life.
AGM technology with internal recombination of 99% of the gases eliminates the need for topping up, making it ideal for both buffer (back-up) and cyclic use.
It can power UPS, alarm systems, emergency lights or photovoltaic systems.
With compact dimensions (151×65×100 mm) and 4.8 mm Faston terminals, it can be easily inserted into small spaces.
Datasheet
• VRLA AGM rechargeable lead-acid technology, sealed
• Nominal voltage 12 V
• Capacity 7 Ah (20 h)
• Faston terminals 4.8 mm (T1)
• Dimensions 151 × 65 × 100 mm; total height with terminals 100 mm
• Buffer charging 13.5–13.8 V
• Cyclic charging 14.4–15.0 V
• Max initial current ≤2.3 A (~1/3 C)
• Internal resistance 90 mΩ
• Operating temperature –15 °C ÷ +50 °C
• UPS, alarm, emergency, telecommunications, renewable energy applications
