Mitsubishi Plus AY Trial Split air conditioner 7000+7000+7000 BTU
Mitsubishi Linea Plus AY 7000+7000+7000 BTU trial split inverter air conditioner with R32 gas
Built-in Wi-Fi
Ideal for rooms of approximately 20 m2








Description
Mitsubishi Linea Plus AY Inverter 7000+7000+7000BTU is an efficient and silent air conditioner, ideal for any type of residential application. The MSZ-AY units are designed to obtain the maximum in operating economy, without sacrificing the elegant and minimal lines of Mitsubishi Electric design. Equipped with cutting-edge technology with integrated Wi-Fi and easily manageable remotely via MELCloud which allows you to manage the system quickly and easily.
The kit consists of :
- 3 Indoor units (MSZ-AY20VGKP)
- 1 Trial split external unit (MXZ-3F68VF4)
- 3 Remote Controls
Advantages of Mitsubishi Air Conditioner Plus Line MSZ-AY20VGKP + MXZ-3F68VF4
- Cooling and heating operation,
- Remote management via App , with MELCloud
- High seasonal energy efficiency
- Weekly timer
- High silence
- Self Clean Mode for better air quality
- Dual Barrier Coating Technology
- Low environmental impact R32 refrigerant gas
Product Features
- ENERGY EFFICIENCY, AIR QUALITY, ELEGANCE AND SILENCE ARE EXALTED IN THIS SERIES OF WALL-MOUNTED AIR CONDITIONERS WITH DC INVERTER TECHNOLOGY The discreet and refined design and the possibility of connection with multisplit systems make this series suitable for any application, be it a home, an office or a small commercial business. Thanks to the careful design of all the components and the use of cutting-edge technologies, energy efficiency and operating economy reach excellent levels even on a seasonal basis
- RESPECT FOR THE ENVIRONMENT Mitsubishi Electric, always attentive to the environment, by using the R32 refrigerant gas complies with European directives regarding the reduction of the greenhouse effect, without damaging the ozone layer.
- Air quality is a measure of how free the air is from the elements characteristic of atmospheric pollution. It therefore measures how healthy the air we breathe is. Knowing which contaminants are present, and controlling their quantity, helps reduce, or even greatly limit, the risk of future health problems and ensures greater comfort for everyone. Mitsubishi Electric systems are designed to improve air quality in the best possible way, creating the optimal conditions for unparalleled comfort in the confined environments in which you live and spend time.
- V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting up to 99% of viruses, bacteria, mold and allergens.
- The standard purifying filter ensures the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-catching effect.
- The Plasma Quad Connect system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, mold and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.
Need a different setup? Contact us for custom solutions!
Datasheet
• Trial split type
• Refrigerant gas R32

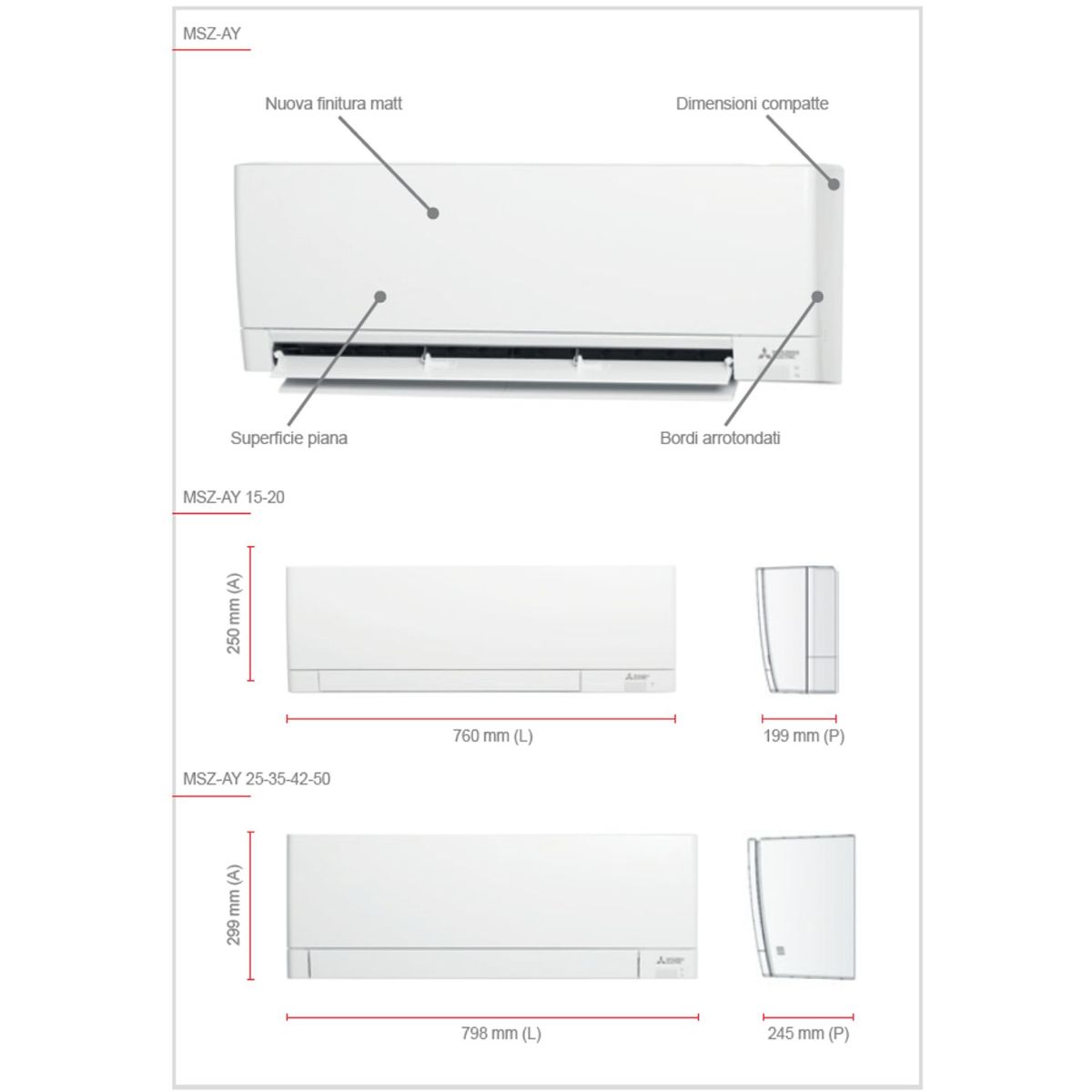

• 7000 BTU indoor unit dimensions (H x W x D) 25 x 76 x 19.9 cm
• Trial split external unit (H x W x D) 71 x 84 x 33 cm
• Sound power level indoor units 57 dB(A) outdoor unit 60 dB(A)
• Operating range -10°C / +46°C in cooling; -15°C / +24°C in heating
• Refrigerant - Precharge 2.4 Kg - TCO2 Eq 1.620 - GWP 675
Package Contents
• 1 Daikin MXZ-3F68VF4 outdoor unit
• 3 Daikin MSZ-AY20VG internal units
• 3 Remote Controls
• User and installation manual
• Pipes, fittings and brackets not included
