Product photos are indicative only
Description

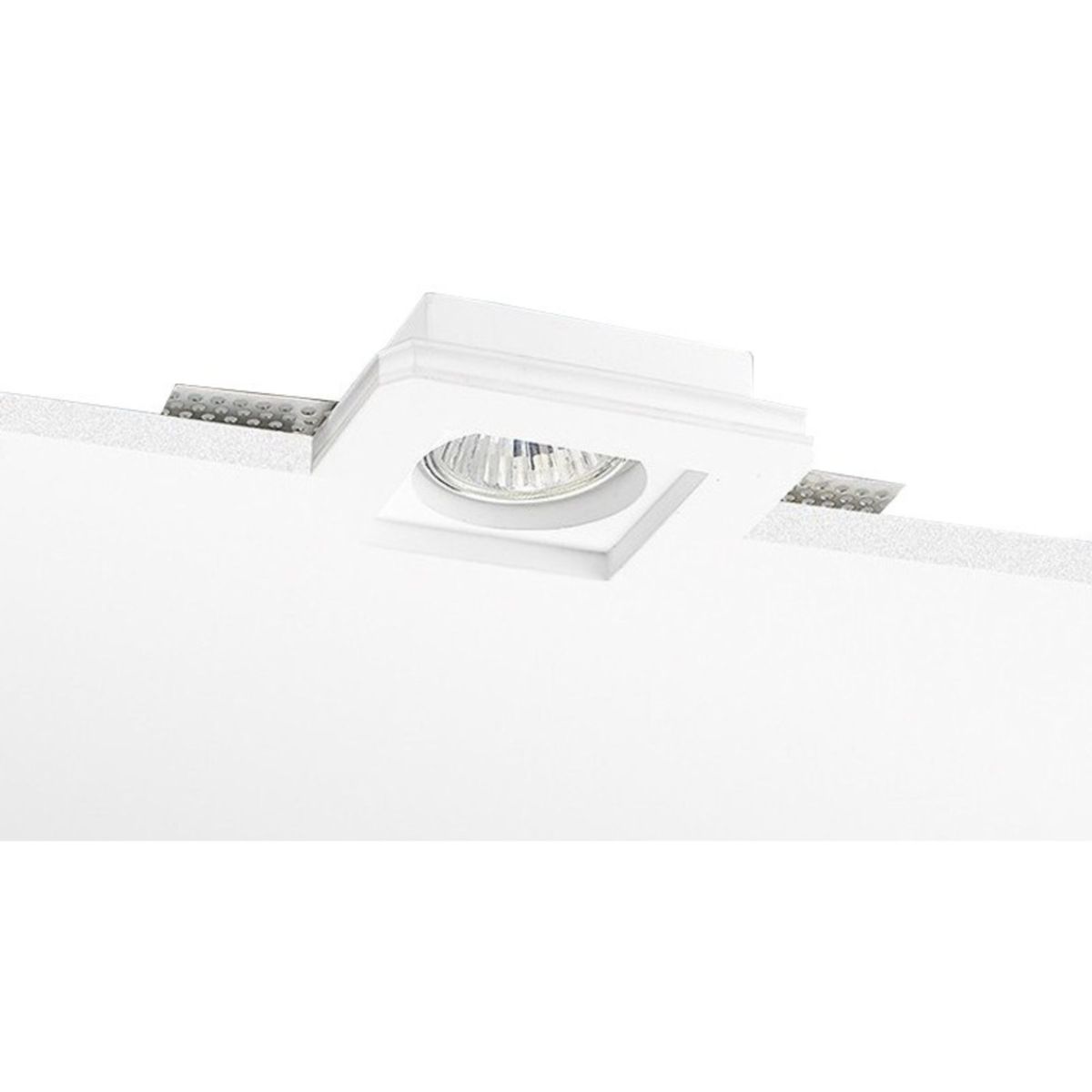

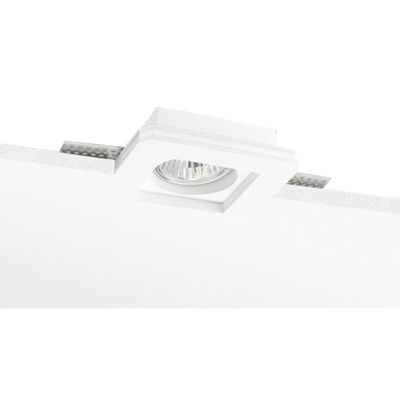

The Nobile 9108 is a recessed spotlight for plaster or plasterboard ceilings, designed for a “totally disappearing” effect.
The body is made of white plaster and must be completed (plastered / stuccoed) to match the ceiling surface.
It is compatible with GU10 (or GU5.3 12V) LED lamps, supports power up to 50 W (in the case of traditional lamps) and requires a 110x110 mm hole for mounting.
Datasheet
• Plaster material (to be finished on the plaster)
• Totally concealed recessed type
• Square shape
• Drilling required 110 × 110 mm
• External distance ~101 × 101 mm
• Height / depth 27 mm
• GU10 or GU5.3 bulb socket
• Maximum bulb power 50 W
• Voltage 230 V / 12 V (depending on the connection)
• Degree of protection IP20
• White color (chalk to be completed)
