Description

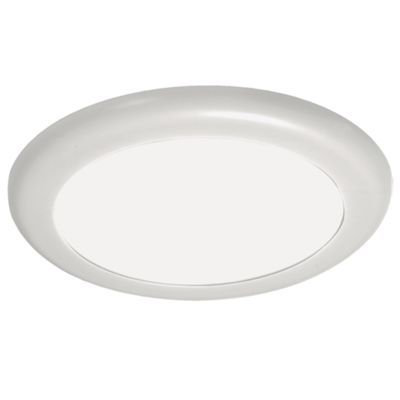

The Novalux 107501.01 is a rounded CREP downlight suitable for recessed installation in plasterboard or as a ceiling light, designed for indoor environments.
Equipped with opal optics that diffuse the light softly, the product offers three power levels (10W, 13W, 16W) and the possibility of selecting the colour temperature between 3000K, 4000K and 5400K.
It has a diameter of Ø 235 mm, a low profile (only 16 mm high) and a variable installation depth range (65-205 mm), perfect for suspended ceilings with limited space.
CRI>80 and LED with a useful life of approximately 30,000 hours (L70 B20).
Datasheet
• Internal use
• Recessed installation in plasterboard or ceiling
• Direct emission
• Opal optics
• White color
• ON/OFF dimming
• Emergency no
• Diameter Ø 23.5 cm
• Height 1.6 cm
• Installation depth 6.5-20.5 cm
• Appliance power 14/17/20 W
• LED source power 10/13/16 W
• Luminous flux 10 W 1094/1173/1134
• Luminous flux 13 W 1387/1516/1447
• Luminous flux 16 W 1642/1826/1696 lm
• Available color temperatures 3000K 4000K 5400K
• CRI >80
• Degree of protection IP 20
• Insulation class II
• Power supply voltage 220-240V 50/60Hz
• SELV no
• LED life 30,000 hours L70 B20
