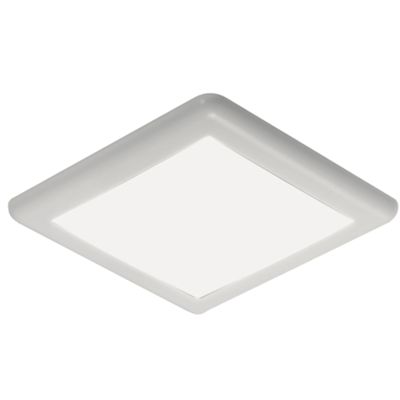

Novalux 107502.01 - ceiling light CREP QUADRATO 10/13/16W 3/4/5400K
Description
The Novalux 107502.01 is a square CREP downlight suitable for recessed installation in plasterboard or as a ceiling light, designed for indoor environments.
Equipped with opal optics that diffuse the light softly, the product offers three power levels (10/13/16W) and the possibility of selecting the colour temperature between 3000K, 4000K and 5400K.
It has a diameter of Ø 235 mm, a low profile (only 16 mm high) and a variable installation depth range (65-205 mm), perfect for suspended ceilings with limited space.
CRI>80 and LED with a useful life of approximately 30,000 hours (L70 B20).
Datasheet
• Internal use
• Recessed installation in plasterboard or ceiling
• Direct emission
• Opal optics
• White color
• ON/OFF dimming
• Emergency no
• Diameter Ø 23.5 cm
• Height 1.6 cm
• Installation depth 6.5-20.5 cm
• Appliance power 14/17/20 W
• LED source power 10/13/16 W
• Luminous flux 10 W 1094/1173/1134
• Luminous flux 13 W 1387/1516/1447
• Luminous flux 16 W 1642/1826/1696 lm
• Available color temperatures 3000K 4000K 5400K
• CRI >80
• Degree of protection IP 20
• Insulation class II
• Power supply voltage 220-240V 50/60Hz
• SELV no
• LED life 30,000 hours L70 B20
