Description

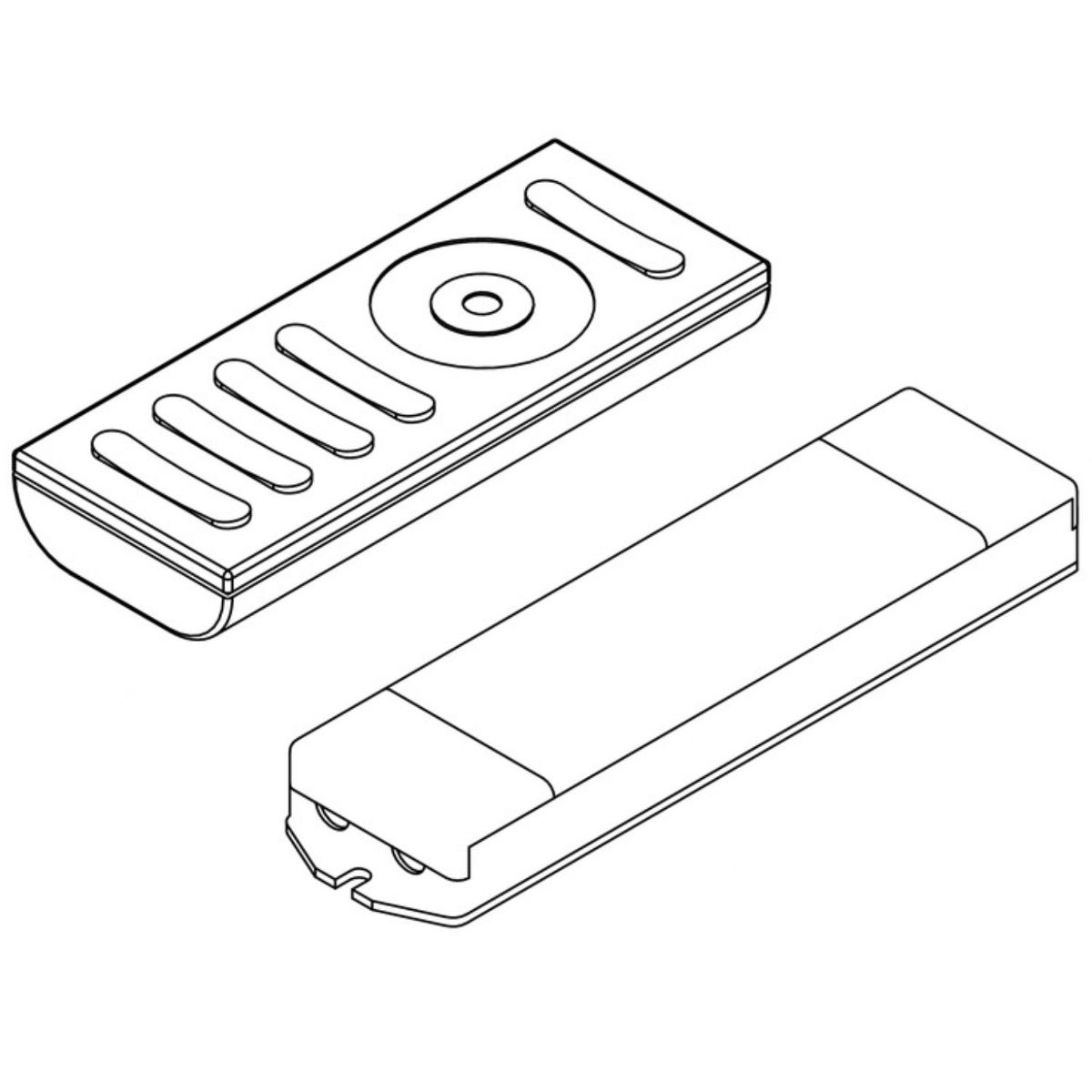

Control system for RGB LED strips, consisting of an actuator and an RF remote control.
The actuator supports a supply voltage of 24V DC and manages up to 3 channels with a maximum current of 5A per channel.
The remote control, powered by 3 AAA batteries (not included), allows color control via a capacitive wheel, brightness adjustment and selection of 10 preset color sequences.
The system is designed for indoor use, with a degree of protection IP20 and insulation class III. It is not possible to connect actuators in cascade, while the 3-year warranty ensures reliability and durability over time.
Datasheet
• Supply voltage 24V DC
• Maximum current per channel 5A
• Number of channels 3 (RGB)
• Insulation class III
• SELV protection
• Degree of protection IP20
• RGB dimming
• Internal use
• Body material plastic
• Dimensions (W x H x H x D) 145 x 47 x 17 x 50 mm
