Description
LUXCONTROL series actuator designed to manage RGB, RGBW, Tunable White and White LED strips that supports advanced dimming and can be controlled via remote controls, touch panels or Wi-Fi transmitters, which can be purchased separately.
The actuator operates with a supply voltage of 24V DC and offers a maximum current of 5A for each of the 4 channels, ensuring precise and reliable lighting control.
It is intended for indoor use only and has an IP20 protection rating. Its compact and lightweight structure facilitates installation in small spaces, while the 3-year warranty ensures reliability and durability over time.
Datasheet
• Supply voltage 24V DC
• Maximum current per channel 5A
• Number of channels 4
• Insulation class III
• SELV protection
• Degree of protection IP20
• RGBW, Tunable White, RGB, White dimming
• Internal use
• Body material plastic

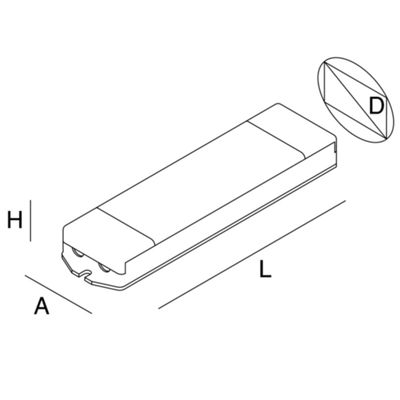

• Dimensions (W x H x H x D) 178 x 46 x 22 x 65 mm
