Description

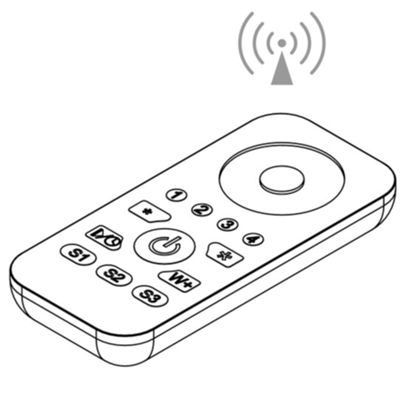

LUXCONTROL series remote control designed to manage the light intensity of white LED strips, equipped with a capacitive pad for continuous brightness adjustment and dedicated buttons for quickly selecting predefined intensity levels (25%, 50%, 75%, 100%).
The remote control can control up to 4 independent zones, each with the ability to store up to 3 custom scenes.
Transmission occurs via radio frequency, with a maximum range of 30 metres in open fields, it is compatible with the Novalux 16905.99 actuator and requires a 24V DC power supply, both of which must be ordered separately.
The device is intended for indoor use only and has an IP20 protection rating, while the 3-year warranty ensures reliability and durability over time.
Datasheet
• Controllable zones 4
• Memorable scenes for zone 3
• Capacitive pad control modes and quick selection buttons (25%, 50%, 75%, 100%)
• Radio Frequency (RF) transmission frequency
• Maximum range 30 meters in open field
• Power supply 3 AAA batteries (not included)
• Compatibility with Novalux actuator 16905.99
• Actuator supply voltage 24V DC (power supply to be ordered separately)
• Insulation class III
• SELV protection
• Degree of protection IP20
• Internal use
• Body material plastic
• Dimensions (W x H x H) 120 x 55 x 17 mm
