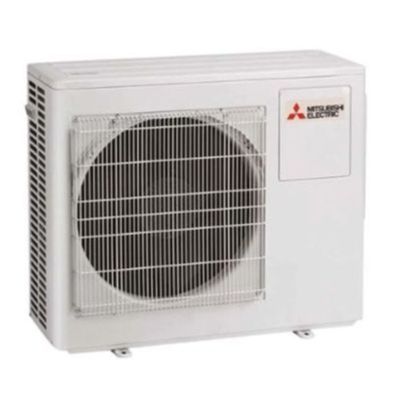

Outdoor unit for quadri split air conditioner Mitsubishi 10.2/10.5kW with R32 gas included
Energy class A++ / A++
Description
The outdoor unit Mitsubishi MXZ-5F102VF2 penta split is designed to provide maximum comfort in any home or office environment, both in cooling and heating, with reduced energy consumption.
With the MXZ-5F102VF2 outdoor unit, it is possible to connect up to 5 indoor units (wall-mounted, floor-standing, ducted, or ceiling-mounted), and they do not necessarily need to be installed in the same room or at the same time.
The outdoor unit is designed to operate from -10°C to +46°C in cooling and from -15°C to +24°C in heating.
The use of R32 refrigerant gas helps the environment by reducing energy consumption. Its compact design makes installation easier even in small spaces.
Nominal cooling capacity: 10.2kW
Nominal heating capacity: 10.5kW
Datasheet
• Penta split type
• Number of supported indoor units: 5
• Cooling capacity: 10.2 kW
• Heating capacity: 10.5 kW
• Energy efficiency A++ in cooling, A++ in heating
• Refrigerant gas R32
• Dimensions (H x W x D): 79.6 x 95 x 33 cm
• Weight: 62 kg
• Sound power level: 65 dB(A)
• Operating range: -10°C / +46°C in cooling; -15°C / +24°C in heating
• Maximum pipe length: 80 m
• Refrigerant - Pre-charge: 2.4 Kg - TCO2 Eq 1.62 - GWP 675
Package contents
• Mitsubishi MXZ-5F102VF2 outdoor unit
• User and installation manual
• Pipes, fittings, and brackets not included
