Outdoor unit for air conditioner quadri split Mitsubishi 7,2/8,6kW with R32 gas included
Energy class A++ / A+
Description

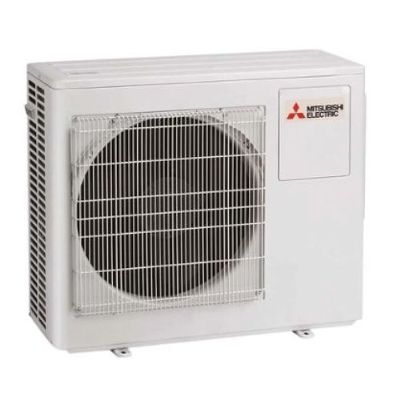

The outdoor unit Mitsubishi MXZ-4F72VF4 quadri split is designed to provide maximum comfort in any home or office environment, in cooling and heating with reduced consumption.
With the MXZ-4F72VF4 outdoor unit, it is possible to connect up to 4 indoor units (wall-mounted, floor-mounted, ducted, or ceiling cassette), and they do not necessarily have to be installed in the same room or at the same time.
The outdoor unit is designed to operate from -10°C to +46°C in cooling and from -15°C to +24°C in heating.
The use of R32 refrigerant gas helps the environment by contributing to lower energy consumption. Its compact design makes installation easier, even in small spaces.
Nominal cooling capacity 7,2kW
Nominal heating capacity 8,6kW
Datasheet
• Type quadri split
• Number of indoor units supported 4
• Cooling capacity 7.2 kW
• Heating capacity 8.6 kW
• Energy efficiency A++ in cooling, A+ in heating
• Refrigerant gas R32
• Dimensions (H x W x D) 71 x 84 x 33 cm
• Weight 59 kg
• Sound power level 63 dB(A)
• Operating range -10°C / +46°C in cooling; -15°C / +24°C in heating
• Maximum pipe length 60 m
• Refrigerant - Precharge 2.4 kg - TCO2 Eq 1.62 - GWP 675
Package contents
• Outdoor unit Mitsubishi MXZ-4F72VF4
• User and installation manual
• Pipes, fittings, and brackets not included
