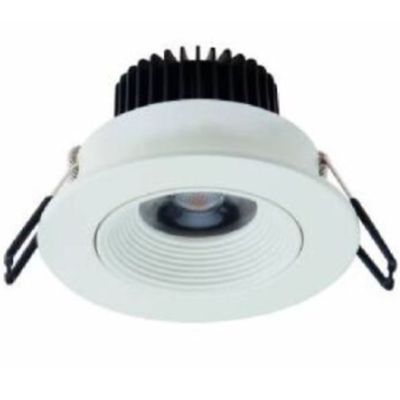

PINA TONDO 12W 4000K white recessed spotlight
Description
Circular LED luminaire for recessed installation in a false ceiling, complete with steel springs for fixing. Frame and dissipating body in painted aluminum alloy. Internal component protection compartment in white ABS. Optical PMMA lens. Springs for false ceiling fixing (thickness up to 15mm) in harmonic steel. Integrated 220-240V 50/60Hz electronic power supply, to be connected to the device via quick connector; power supply to be installed on the false ceiling next to the product.
Datasheet
Technical specifications:
• Total power 9W
• White color
• Electronic ballast included (dim. 115x45mm H=28mm)
• Power supply voltage 220-240V 50/60 Hz
• Color temperature 4000K
• Luminaire luminous flux (Ta=25°C) 1050 lm
• Useful Life (Ta=25°C) 30000h L70
• CRI >80
• Diameter 138 mm
• Height 69 mm
Certifications:
• CEI EN 60598-1:2015 + A11:2009
• IEC 60598-2:2015 2-1
