Perry 1GA 48917MET/P - ZEFIRO methane gas detector with BUS input
SKU: PER1GA48917MET/P
Brand: Perry

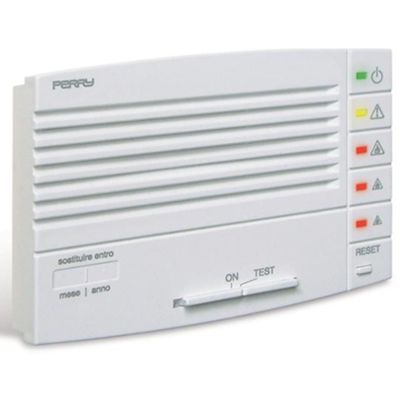

Wall and/or semi-recessed methane gas detector from the “ZEFIRO” series with BUS input
Description
Wall and/or semi-recessed methane gas detector from the “ZEFIRO” series with BUS input, settable on three different signalling levels, ON/Fault/Gas concentration indicator LED.
The date on the label indicates the production batch, not the expiration date.
Datasheet
• Power supply 230V AC 50-60Hz
• Output 1 potential-free deviation contact: 8(2)A/250Vac.
• Signal buzzer 85dB at 1 m
• LED indication ON
• Failure indication LED
• LED indication of gas presence
• Intervention level 5000 ppm 10% LEL
• IP42 wall mounting
• Dimensions (WxDxH) 120 x 40 x 82 mm
• Semi-recessed mounting with IP40 accessory
• Dimensions (WxDxH) 120 x 27.5 x 82 mm
• DIN dimensions 17.5 x 60 x 90 mm
