Description

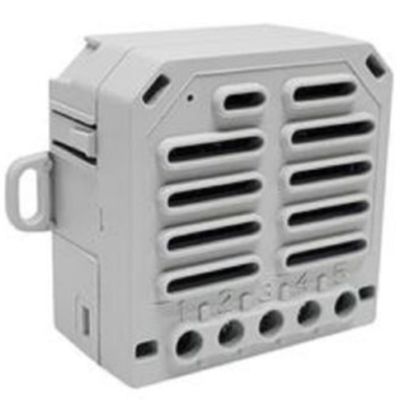

Round or rectangular recessed box bottom dimmer.
Datasheet
Technical specifications:
• Power supply 230V AC ± 10% 50 Hz
• TE 400W incandescent lamps
• 400W TE halogen lamps
• LEDTE 100W
• LEDLE 25W
• L type LE 200W electromechanical transformers
• P (min-max) 0-200/0-200/0-100/0-25/0-200W
• Section of cables at terminals 0.75..... 6 mm²
• IP20 protection rating
• Operating temperature from -10°C to +35°C
• Storage temperature from -10°C to +60°C
• Dimensions 58.7 x 45 x 25.3 mm
Certifications:
• THERE IS
