Description

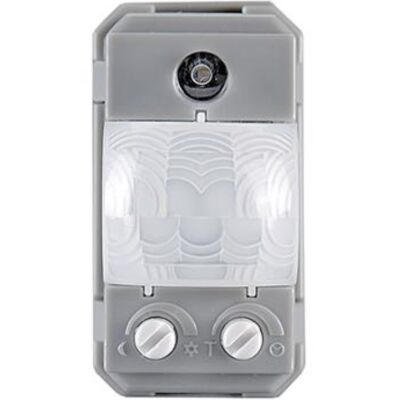

1 module built-in motion detector for domestic series with white lens.
IP40 protection rating and 230V ± 10% 50 Hz power supply.
With 5A / 250V relay and detection angle up to 110° at 20°C.
Datasheet
Technical specifications:
• 5A / 250V relay
• Intelligent driving of the "ZERO CROSSING" relay
• Maximum driveable power:
• 800W incandescent lamps
• 200W fluorescent lamps - CFL/LED (230V) 6
• IP40 protection rating
• Section of cables at terminals 0.75..... 2.5 mm²
• Normal degree of pollution
• Installation of 1 civil module in a 503 type built-in box
• Detection angle up to 110° at 20°C
• Detection range approx. 8 m. at 20°C
• Timing adjustment from approximately 5 seconds to approximately 12 minutes
• Brightness adjustment from approximately 5 to approximately 200 LUX
• Heating time at first startup or recovery from blackout approximately 1 minute
• Function that can be activated with the off/automatic/manual exclusion switch
• Operating temperature from 0°C to +40°C
• Storage temperature from -10°C to +60°C
• Dimensions (WxDxH) of a civil module in a 503 type built-in box
Certifications:
• THERE IS
