Description

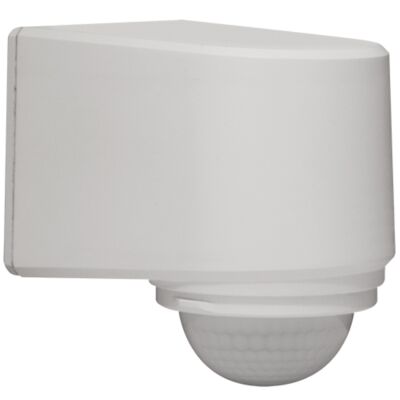

“ZERO” series wall-mounted motion detector, white in color with IP44 protection rating. Power supply 230V ± 10% 50 Hz. With brightness adjustment from 5 to 1000 LUX and warm-up time upon first switching on or recovery from blackout of approximately 40”.
Datasheet
Technical specifications:
• Power supply 230V AC ± 10% 50 Hz
• Maximum driveable power:
• 1800W incandescent lamps
• 480W unphased fluorescent lamps
• 250W parallel compensated fluorescent lamps
• CFL/LED lamps (230V) 7W ÷ 23W max 5 lamps.
• IP44 protection rating
• Section of cables at terminals 0.75..... 2.5 mm²
• Normal degree of pollution
• Detection angle up to 220°
• Max detection distance 12 m
• Timing adjustment from approximately 35" to approximately 20'
• Brightness adjustment from 5 to 1000 LUX
• Heating time at first startup or recovery from blackout approximately 40"
• Operating temperature from -20°C to +40°C
• Storage temperature from -25°C to +70°C
• Dimensions (WxDxH) 72.6 x 91.6 x 93.5 mm
Certifications:
• THERE IS
