Description

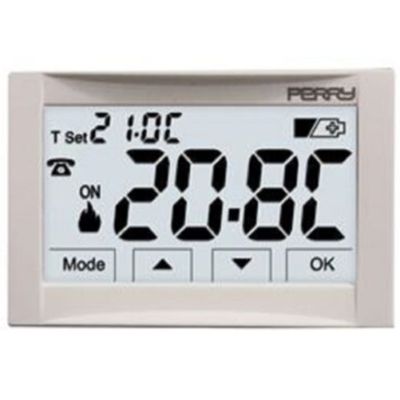

3V recessed digital thermostat “MOON” TOUCH SCREEN series with 3V 2x1.5V AA alkaline power supply
Output 1 potential-free deviation contact: 5(3)A/250Vac.
With the three front panels supplied in the package, the products are dimensionally and chromatically compatible with the plates of the series: ABB Chiara, BTicino Light, LivingLight, Matix and Axolute, Gewiss Chorus and Vimar Plana, Eikon, Arkè.
Datasheet
Technical specifications:
• Power supply 3 V – 2x1.5V AA alkaline
• Output 1 potential-free deviation contact: 5(3)A/250Vac.
• ON/OFF operation with differential adjustable from 0.2 – 1.2°C or modulating with control period from 7 - 20 min
• Temperature levels 2 + antifreeze
• Timed backlighting
• Autonomy 24 months
• Telephone command input
• LOW BAT indication
• Relay status indication
• EXT/WIN command
• Temperature set block
• Detection correction based on product positioning
• Regulation range 5 - 37.7°C
• Dimensions (WxDxH) 65 x 53 x 47 mm
Certifications:
• THERE IS
