Description

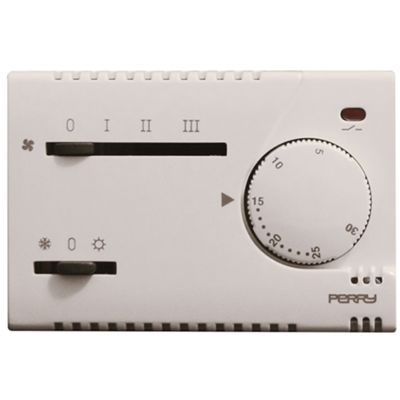

230V “MODULO” series electronic thermostat for Fan-coil with 230V AC 50-60Hz power supply.
Temperature regulation on graduated scale with mechanical set-point index and with 1 temperature levels with continuous regulation.
Set-point with mechanical temperature lock.
With the three front panels supplied in the package, the products are dimensionally and chromatically compatible with the plates of the series:
- ABB: Chiara
- BTICINO: Light, LivingLight Bianca, Light Tech, LivingLight Tech, Living, LivingLight Anthracite, Matix, Axolute Tech, Axolute Anthracite, Axolute Bianca
- GEWISS: Chorus ONE/LUX/FLAT/GEO White, Chorus ONE/LUX/FLAT/GEO Black, Chorus ONE/LUX/FLAT/GEO Titanium
- VIMAR: Plana, Plana Silver, Eikon Grigia, Eikon Next, Eikon Bianca, Arké Bianca, Arké Nera
Datasheet
Technical specifications:
• Power supply 230V AC 50-60Hz
• Output 1 polarized NO contact: 5(2)A/250Vac.
• Proportional operation with fixed period
• EXT/OFF/WIN command
• Speed control I°, II°, III°
• Temperature regulation on graduated scale with mechanical set-point index
• 1 temperature levels with continuous adjustment
• Set-point with mechanical temperature lock
• LED indicating relay status
• Regulation range 5 - 30°C
• Dimensions (WxDxH) 66 x 49 x 45 mm
Certifications:
• THERE IS
